4016 deck lift repair

[Spike188]

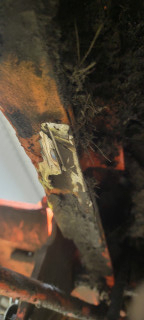

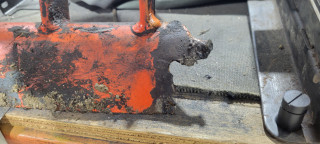

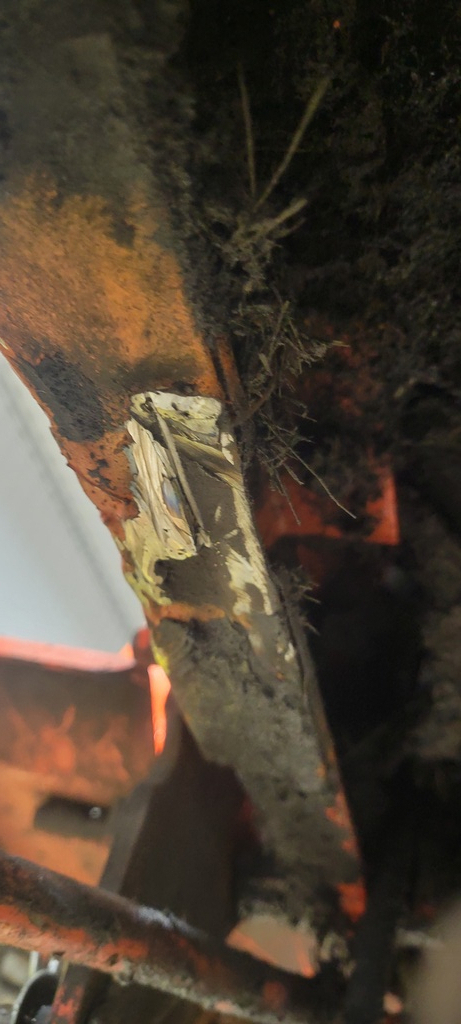

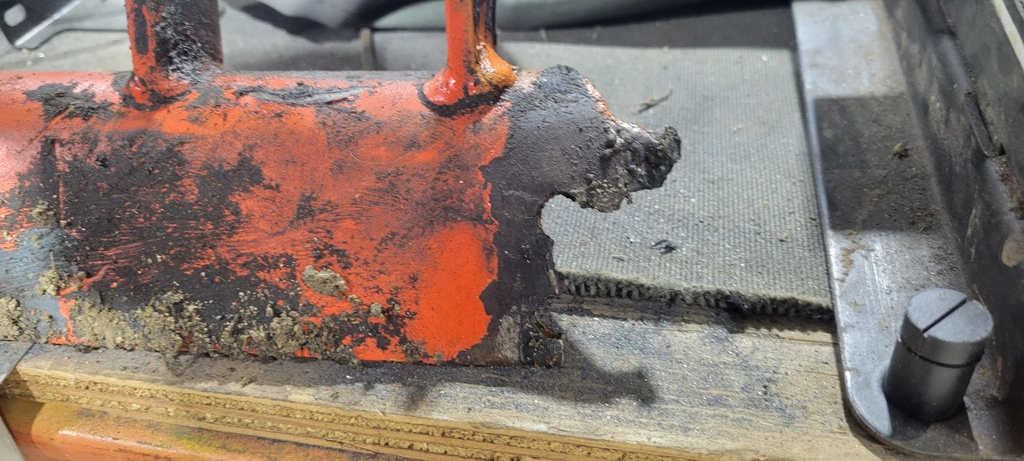

The midlift cylinder mount bracket had been repaired by a previous owner. When putting the tractor in for winter storage the bracket was found riped off again.

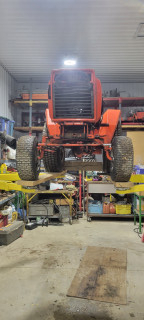

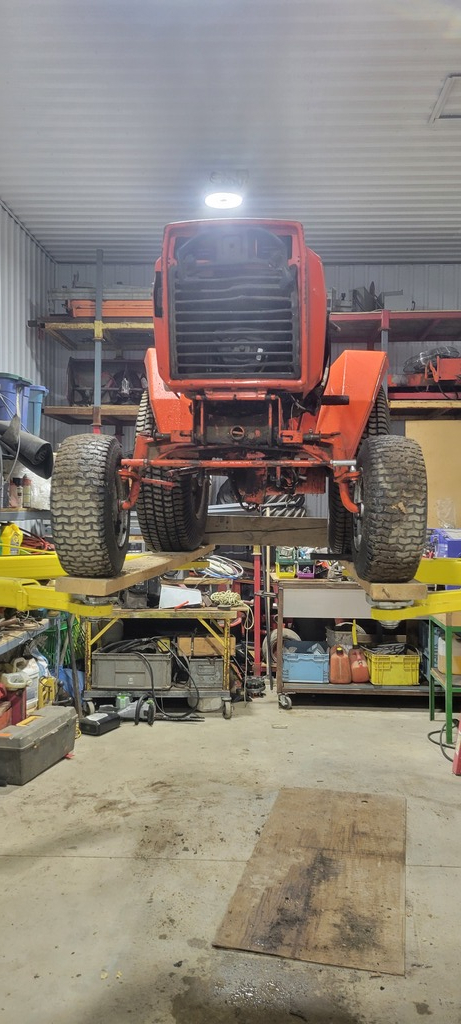

Having a car hoist in the shop made the repair many many times easier.

The first step was grinding the old weld off of the frame.

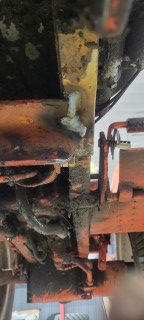

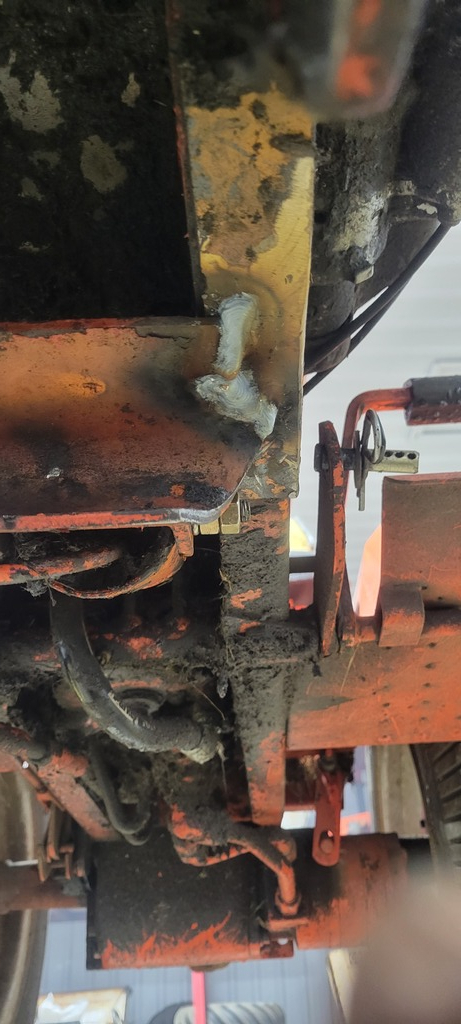

Then clamping the bracket back into place. It did not take long to weld the bracket to the frame.

Start to finish the repair took about 1-1/2 hours.

[Harry]

Spike, I’m sure down the road you will use your two post lift many times. Great addition to a great shop
