Wiring diagram/tractor progress
Hey Iam looking for a wiring diagram for a 72 case 442. I have a parts manual in PDF form and it has one in it but the clarity is a little off. Iam trying to rebuild my harness but it’s a mess and been apart for awhile so I just want to make sure I get it right the first time. Mine has the generator that is also the starter.
Last edited by BasketCase on Sun Jun 19, 2022 11:24 am, edited 1 time in total.
-
Eugen
- Posts: 5379
- Joined: Wed Mar 03, 2021 2:52 pm
- Location: Port Mcnicoll, Ontario
- Has thanked: 14075 times
- Been thanked: 17440 times
- Contact:
Re: Wiring diagram
Can you have a look at this manual and see if it fits?BasketCase wrote: ↑Sat Jun 18, 2022 9:35 pm Hey Iam looking for a wiring diagram for a 72 case 442. I have a parts manual in PDF form and it has one in it but the clarity is a little off. Iam trying to rebuild my harness but it’s a mess and been apart for awhile so I just want to make sure I get it right the first time. Mine has the generator that is also the starter.
https://manuals.ccigt.com/ServiceManual ... marked.pdf
-
DavidBarkey
- Posts: 4093
- Joined: Sat Mar 06, 2021 10:35 am
- Location: Waverley On.
- Has thanked: 20647 times
- Been thanked: 15134 times
Re: Wiring diagram
That is a good one . comes up nice and clear when I read it . @BasketCase How is your build coming along .Eugen wrote: ↑Sat Jun 18, 2022 10:58 pmCan you have a look at this manual and see if it fits?BasketCase wrote: ↑Sat Jun 18, 2022 9:35 pm Hey Iam looking for a wiring diagram for a 72 case 442. I have a parts manual in PDF form and it has one in it but the clarity is a little off. Iam trying to rebuild my harness but it’s a mess and been apart for awhile so I just want to make sure I get it right the first time. Mine has the generator that is also the starter.
https://manuals.ccigt.com/ServiceManual ... marked.pdf
Dave
Mad Tractor Builder
Mad Tractor Builder
-
BasketCase
- Posts: 15
- Joined: Sat Jun 18, 2022 6:26 pm
- Location: Maryland
- Been thanked: 70 times
Re: Wiring diagram
That is a good clear picture! I was actually looking around and found the pdf manual section on this site. Already loving it
-
BasketCase
- Posts: 15
- Joined: Sat Jun 18, 2022 6:26 pm
- Location: Maryland
- Been thanked: 70 times
Re: Wiring diagram

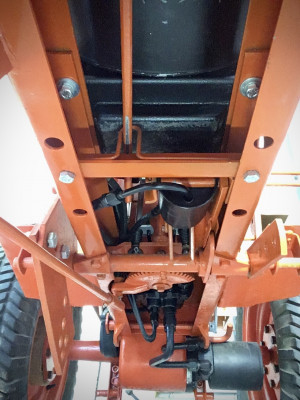

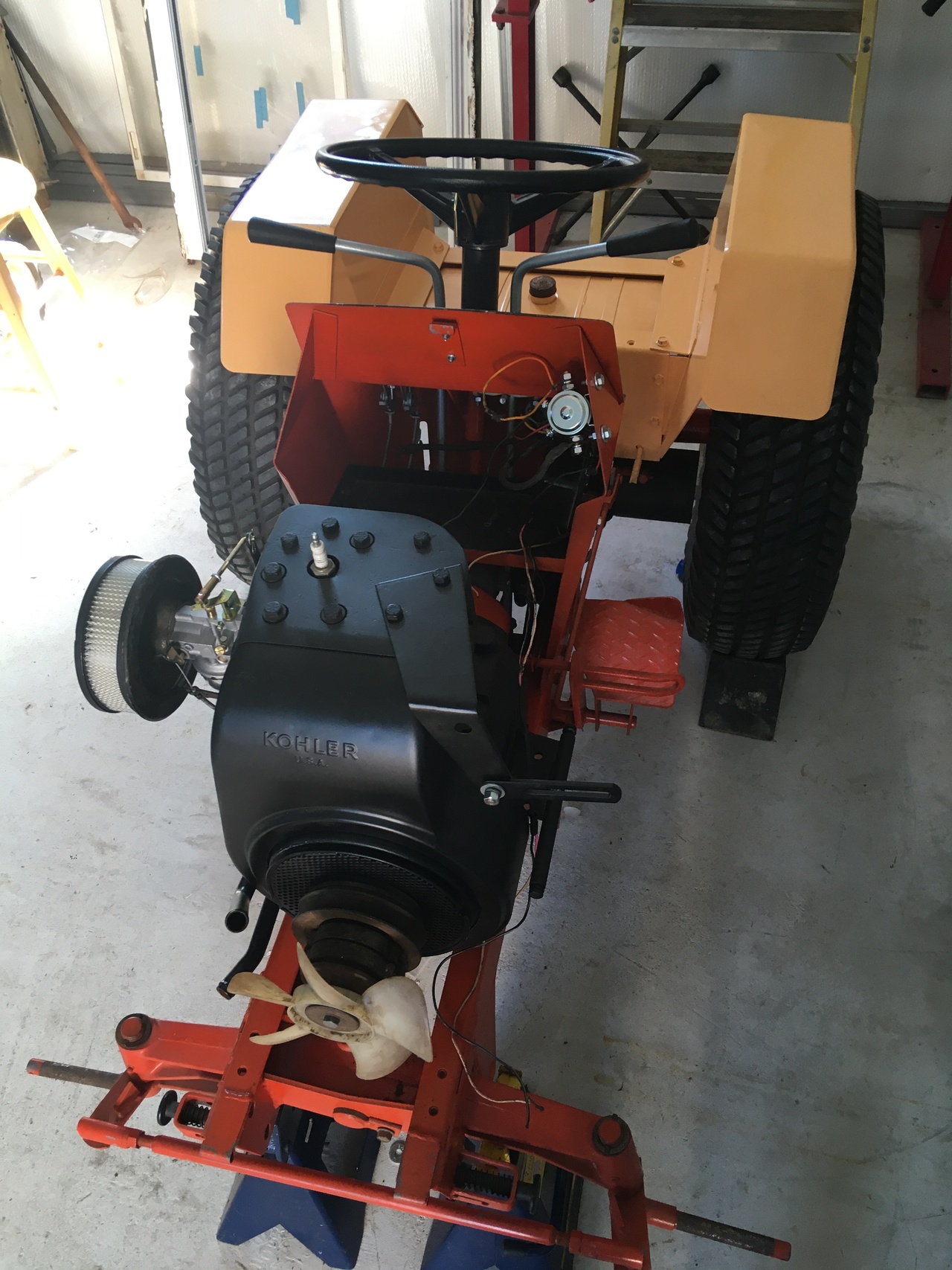

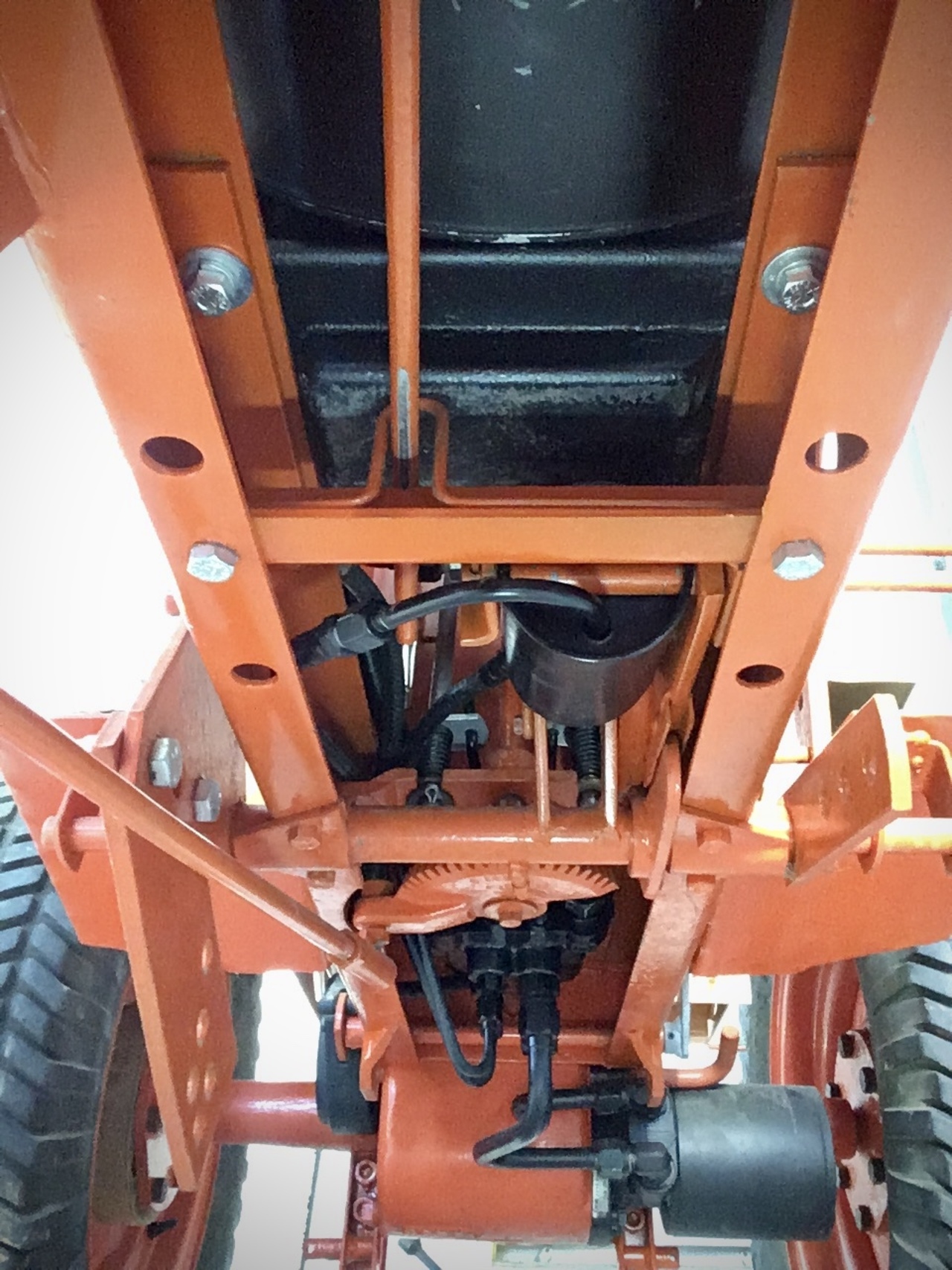

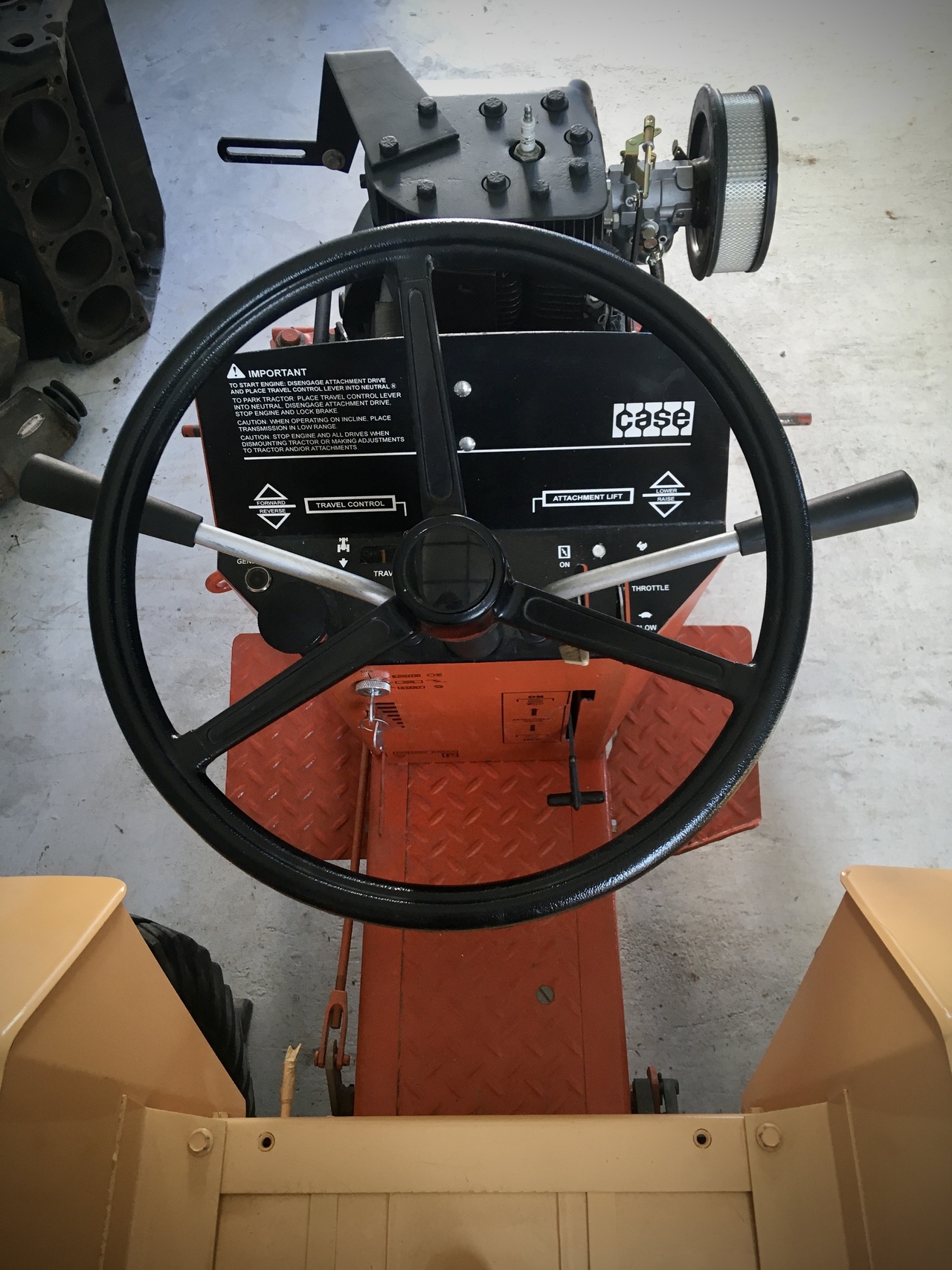

Here is its current state
every part of this tractor has been disassembled,inspected,rebuilt. Some of its color may be off. My power red was mixed but looks more like allis orange. Iam just going to go with it as it looks ok to me. Some custom color combos as I choose black for all power/braking parts. I still have to finish the front wheels and the hood. One day I will get there.
-
DavidBarkey
- Posts: 4093
- Joined: Sat Mar 06, 2021 10:35 am
- Location: Waverley On.
- Has thanked: 20647 times
- Been thanked: 15134 times
-
Timj
- Posts: 1457
- Joined: Thu Mar 04, 2021 9:57 pm
- Location: Central WI
- Has thanked: 5376 times
- Been thanked: 5113 times
Re: Wiring diagram/tractor progress
Looking good, the black is a nice accent.
