Post your winter tractor setups
- propane1
- Posts: 2488
- Joined: Thu Dec 23, 2021 11:32 am
- Location: PEI, Canada
- Has thanked: 5928 times
- Been thanked: 9010 times
Re: Post your winter tractor setups
Great videos MattA. Have seen them before, but sure like watching them again. Very controlled snow throwing in the second video.
Noel
Noel
- DavidBarkey
- Posts: 3207
- Joined: Sat Mar 06, 2021 10:35 am
- Location: Waverley On.
- Has thanked: 17613 times
- Been thanked: 10930 times
Re: Post your winter tractor setups
@MattA Impressive , that works really well . what engine is in that one ?
Dave
Dave
Dave
Mad Tractor Builder
Mad Tractor Builder
- Timj
- Posts: 1449
- Joined: Thu Mar 04, 2021 9:57 pm
- Location: Central WI
- Has thanked: 5270 times
- Been thanked: 5062 times
Re: Post your winter tractor setups
Did anyone watch the following video by Circus62. That 4020 was handling some serious snow.
deck's on, blades sharp, let's go it's time to mow
- MattA
- Posts: 916
- Joined: Sun Mar 07, 2021 1:57 pm
- Location: Swansea MA
- Has thanked: 2 times
- Been thanked: 3913 times
Re: Post your winter tractor setups
He's got a bunch of good videos. On the old site his user name is Don40207020.
I've got a bunch more Case Ingersoll snow removal videos I'd like to post. I was thinking of starting a winter snow removal thread.
Ingersoll 4016
- Eugen
- Posts: 5178
- Joined: Wed Mar 03, 2021 2:52 pm
- Location: Port Mcnicoll, Ontario
- Has thanked: 12159 times
- Been thanked: 16421 times
- Contact:
Re: Post your winter tractor setups
Please start, I'll be happy to add stuff to it however lame my tractor ends up being. As soon as I get to clear snow, that is.
Case 224, 444, 644, 680E
Kubota B26
Kubota B26
- Timj
- Posts: 1449
- Joined: Thu Mar 04, 2021 9:57 pm
- Location: Central WI
- Has thanked: 5270 times
- Been thanked: 5062 times
Re: Post your winter tractor setups
I've watched a bunch of his before. He seems to be in an area that regularly gets big snow.
He's definitely got that machine dialed in to handle it.
deck's on, blades sharp, let's go it's time to mow
- propane1
- Posts: 2488
- Joined: Thu Dec 23, 2021 11:32 am
- Location: PEI, Canada
- Has thanked: 5928 times
- Been thanked: 9010 times
Re: Post your winter tractor setups

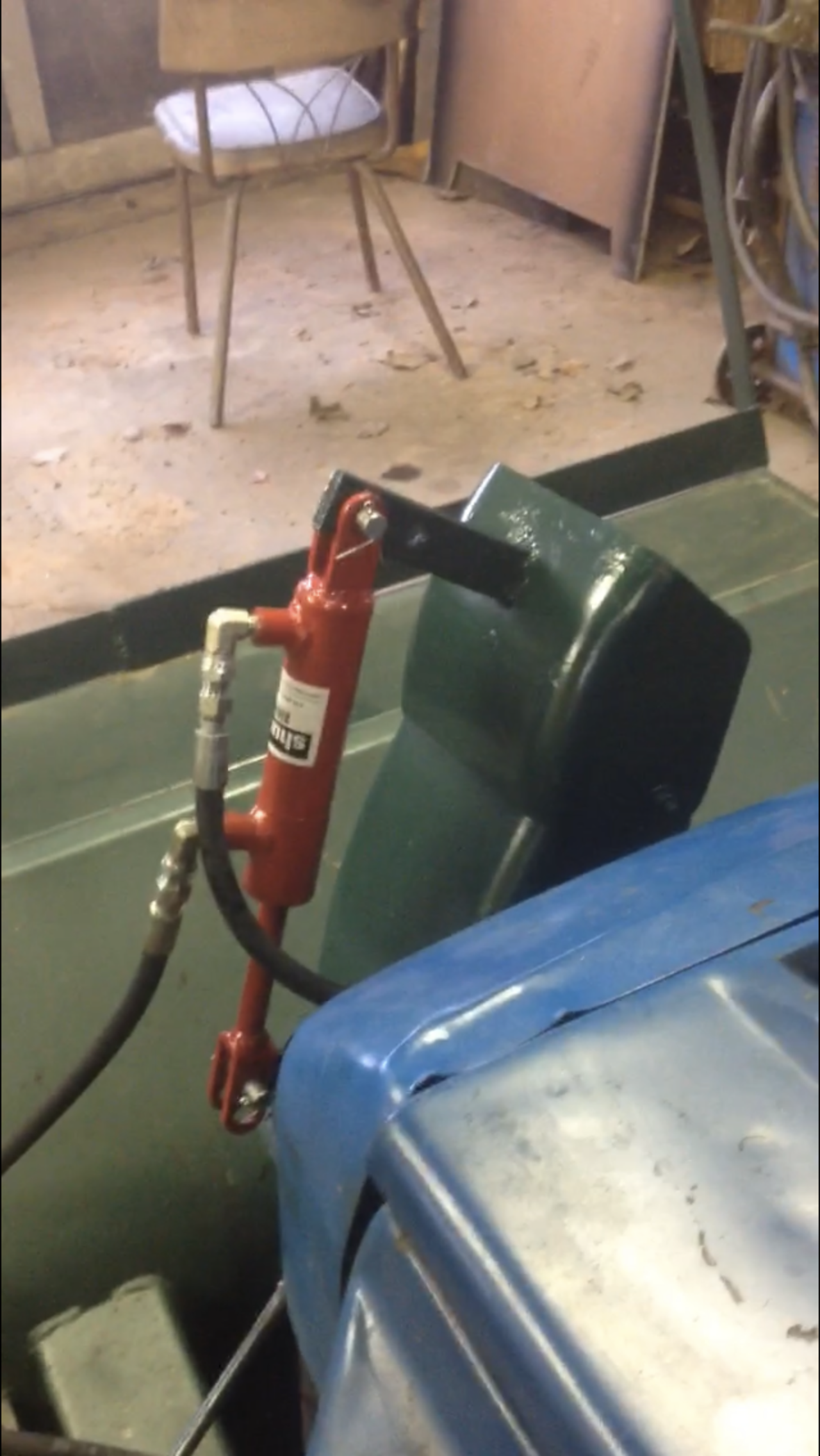

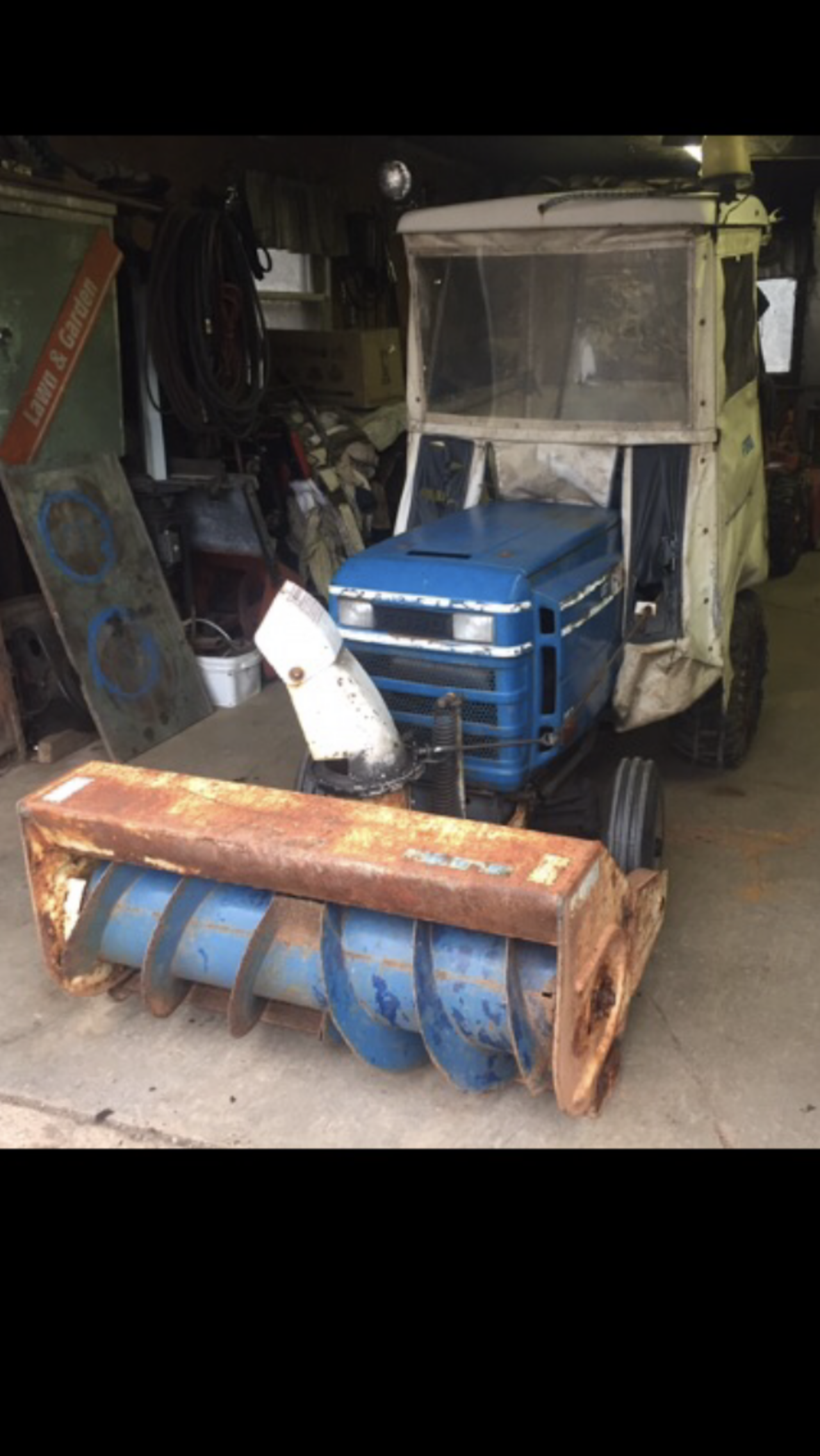

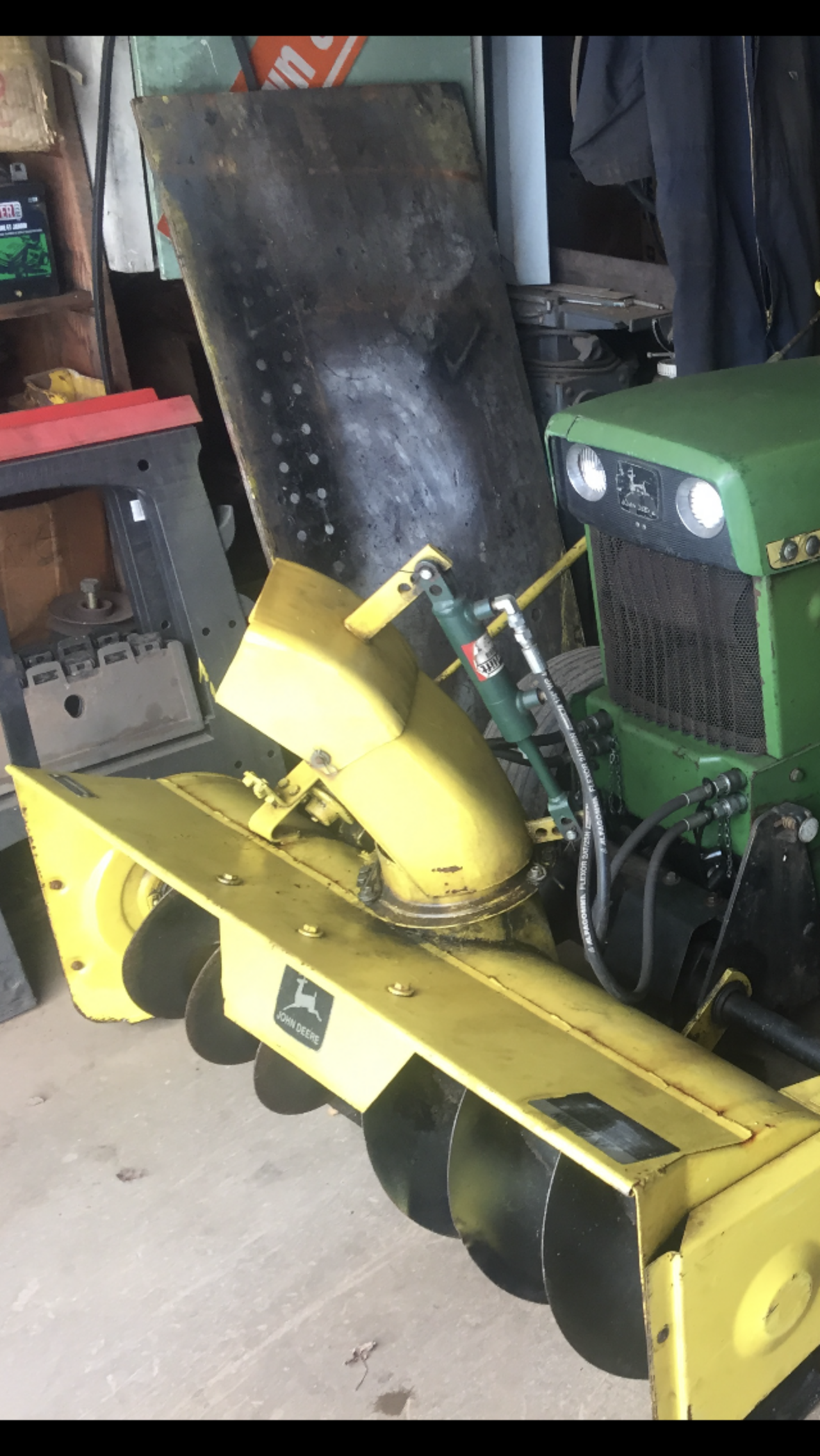

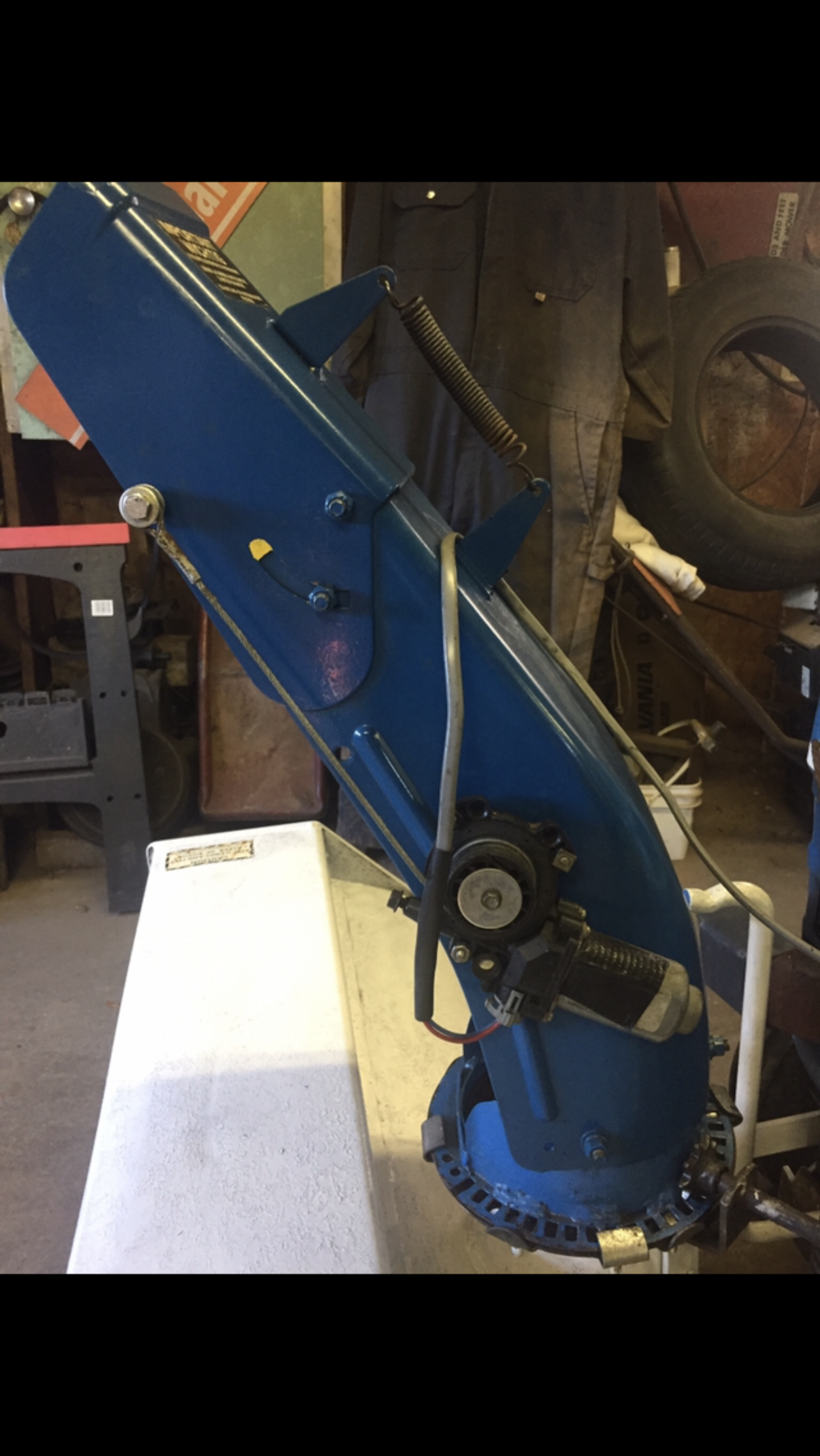

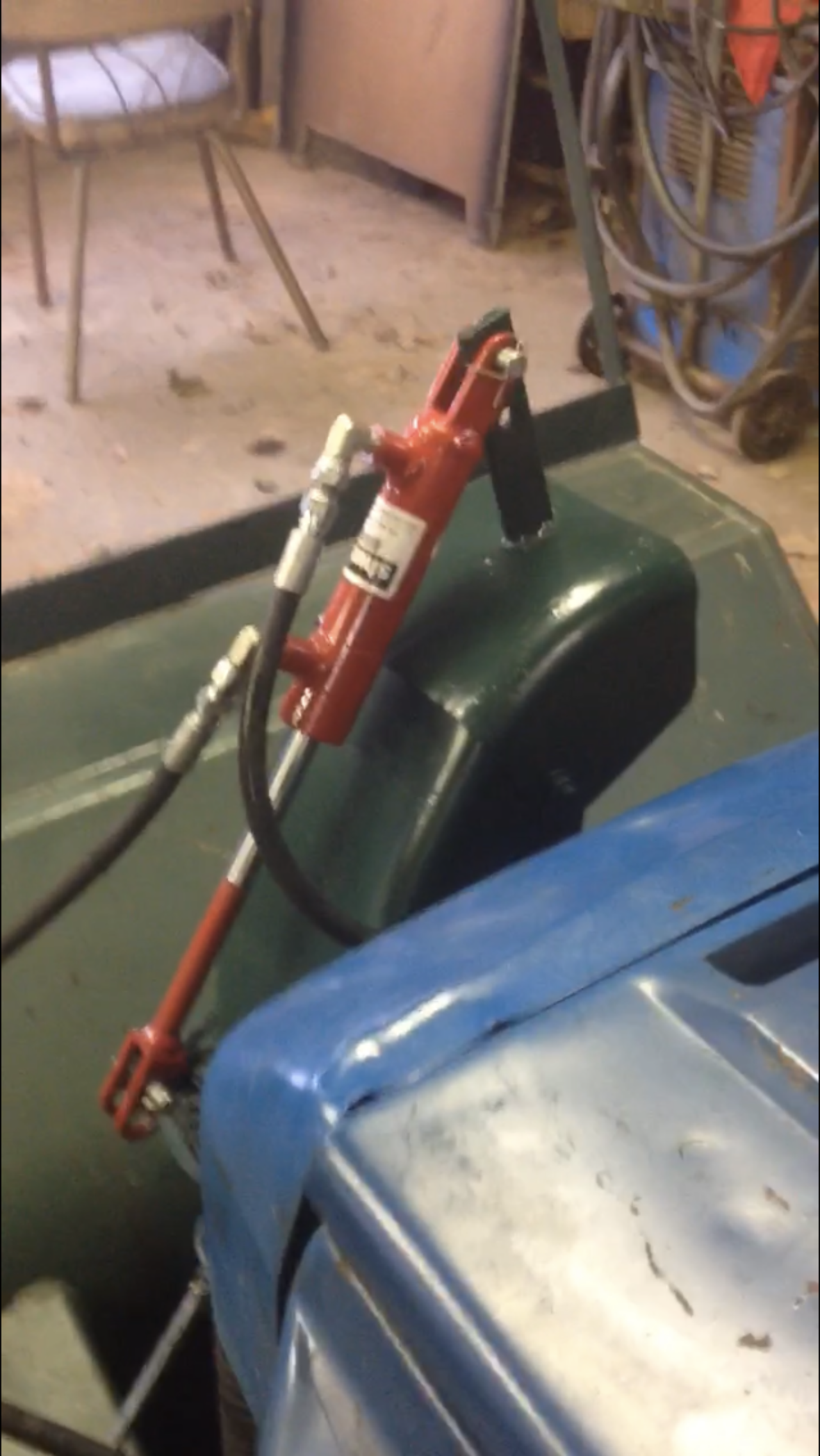

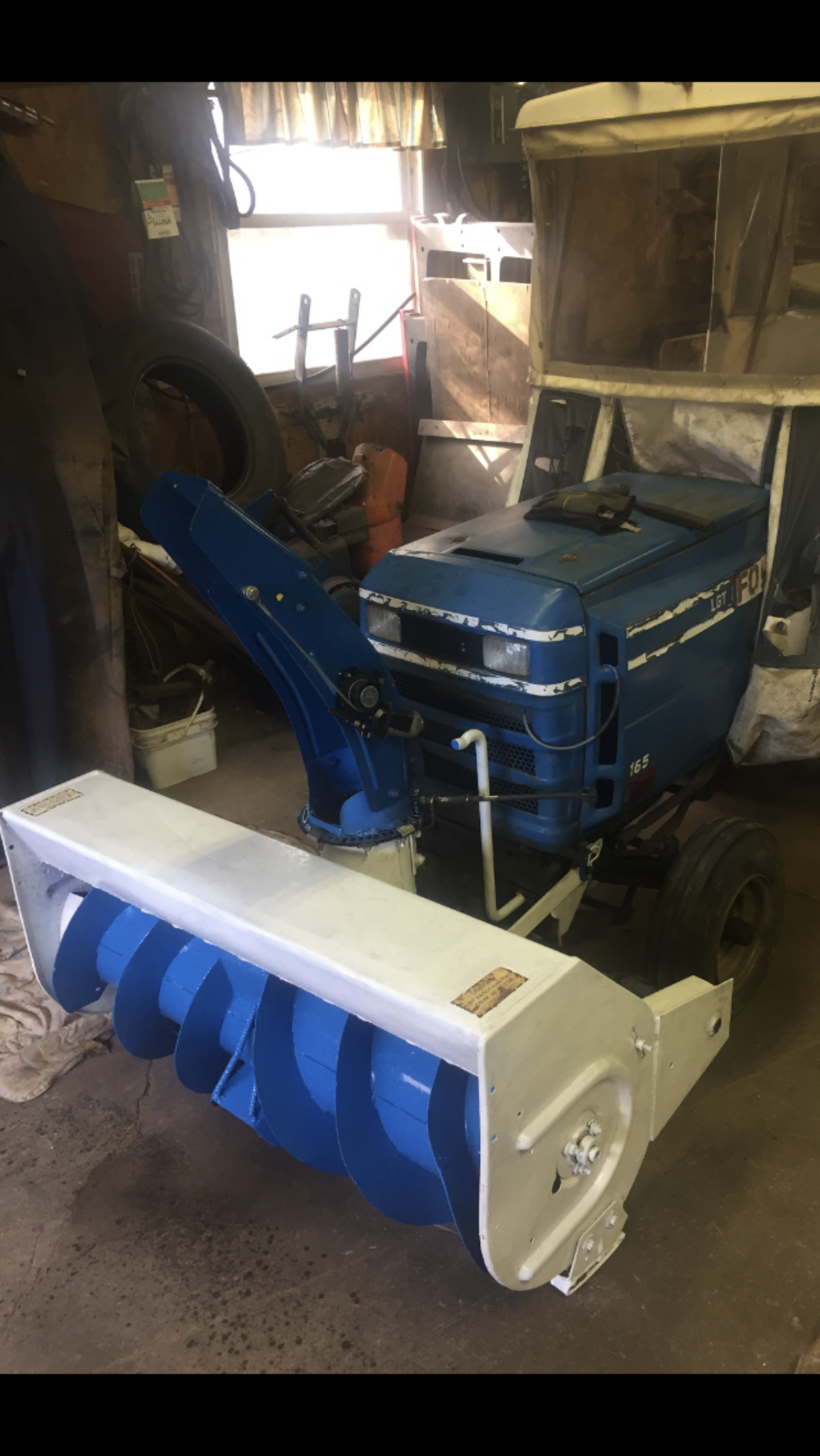

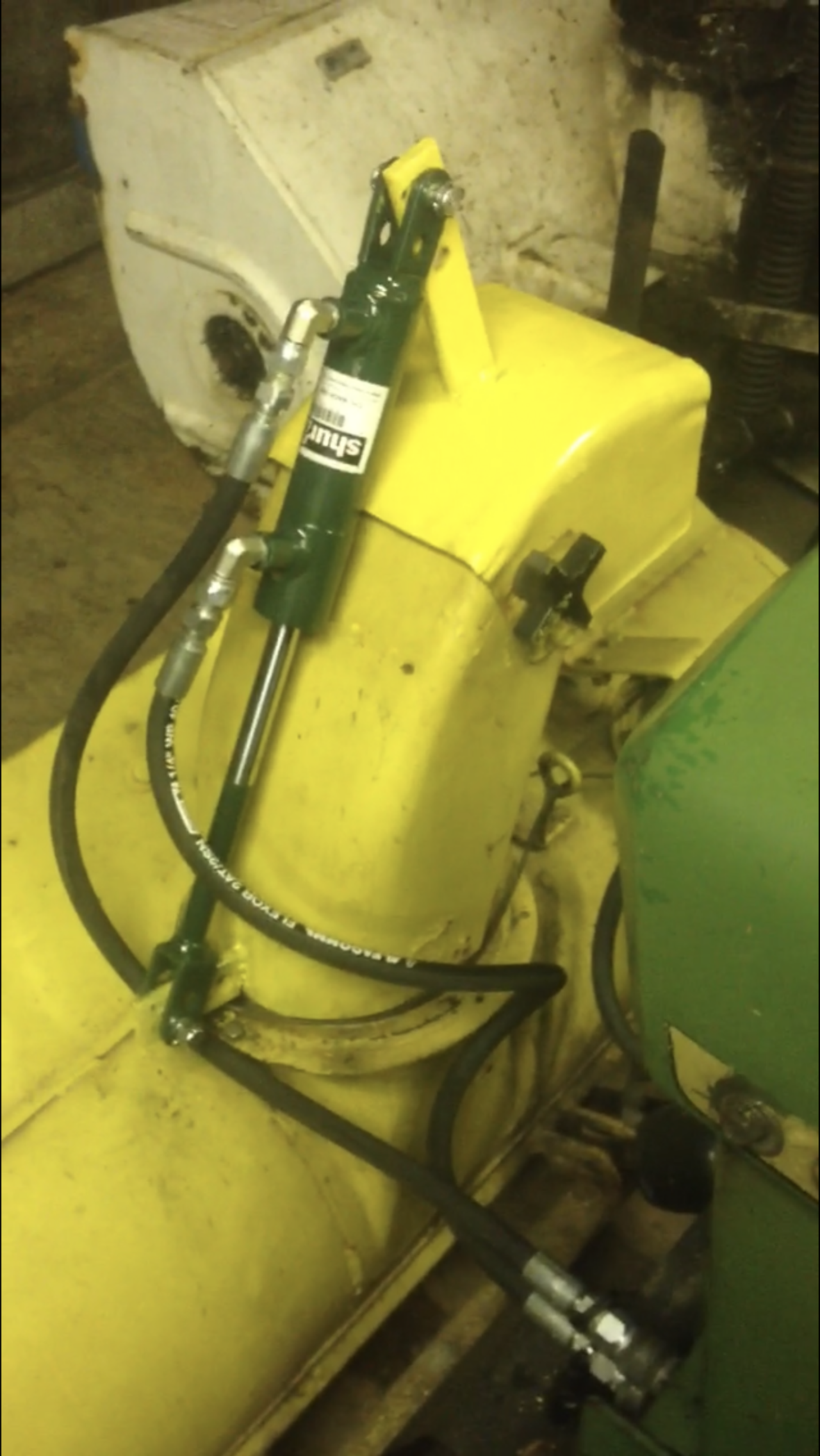

Some chute fix up pictures I did the last few years. The top defector is the best modification I ever did. All of my snow thrower are manual turn. Which I don’t mind. I sure like the in seat to operate top defector modification, whether it’s power window set up or hydraulic. They operate quick. I’m hoping to do some thing with the Cases, when ever I get them working good.
Noel
Noel
- DavidBarkey
- Posts: 3207
- Joined: Sat Mar 06, 2021 10:35 am
- Location: Waverley On.
- Has thanked: 17613 times
- Been thanked: 10930 times
Re: Post your winter tractor setups
@Propane57 I like the cable drive idea . Not seen that one before , and there all weather motors too.
Dave
Dave
Dave
Mad Tractor Builder
Mad Tractor Builder
- MattA
- Posts: 916
- Joined: Sun Mar 07, 2021 1:57 pm
- Location: Swansea MA
- Has thanked: 2 times
- Been thanked: 3913 times
Re: Post your winter tractor setups
The Case 448 should have an 18HP Onan. I'll leave it to the Onan guys for the exact model.DavidBarkey wrote: ↑Tue Jan 11, 2022 8:18 am @MattA Impressive , that works really well . what engine is in that one ?
Dave
Ingersoll 4016
- propane1
- Posts: 2488
- Joined: Thu Dec 23, 2021 11:32 am
- Location: PEI, Canada
- Has thanked: 5928 times
- Been thanked: 9010 times
Re: Post your winter tractor setups

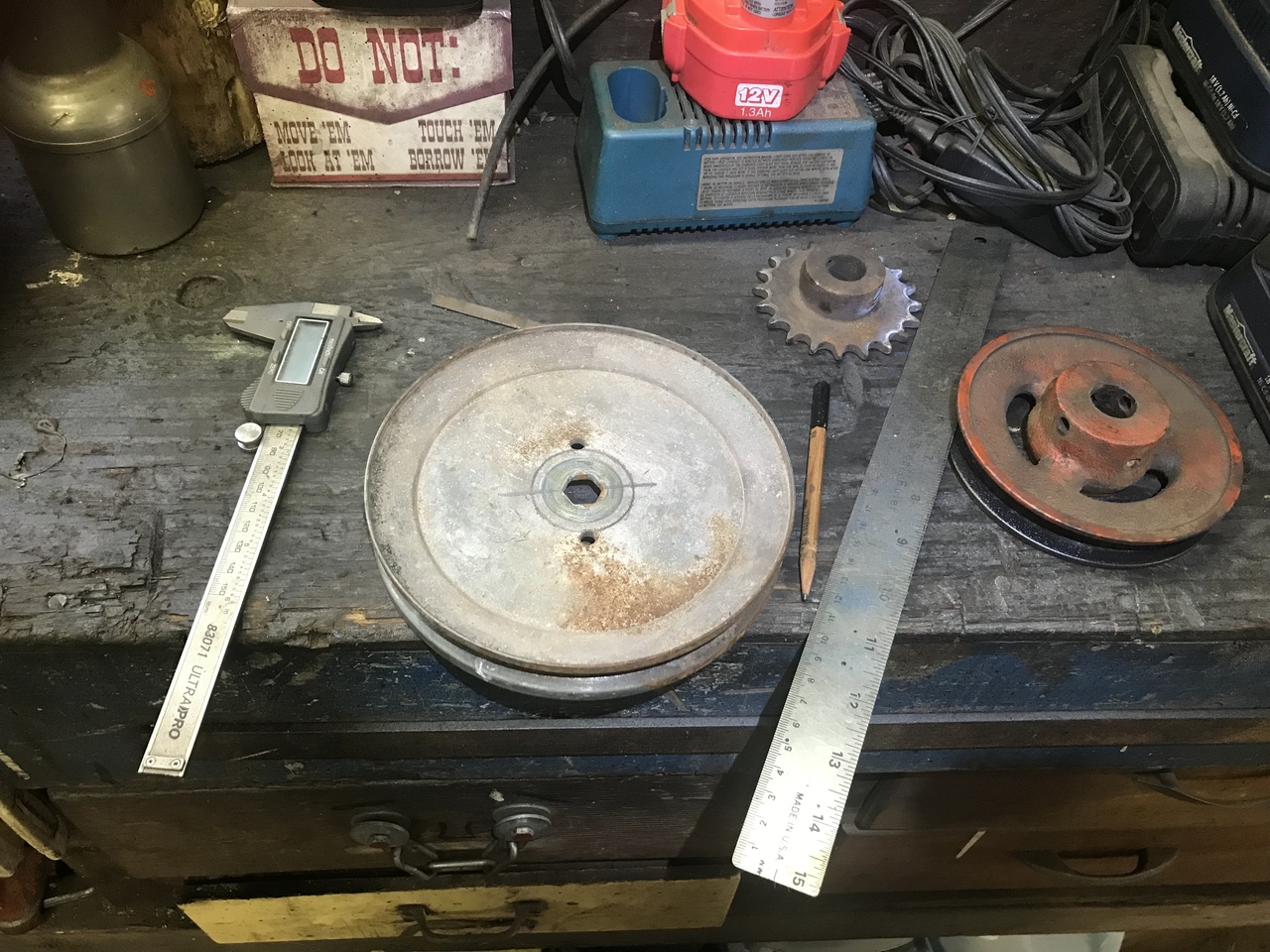

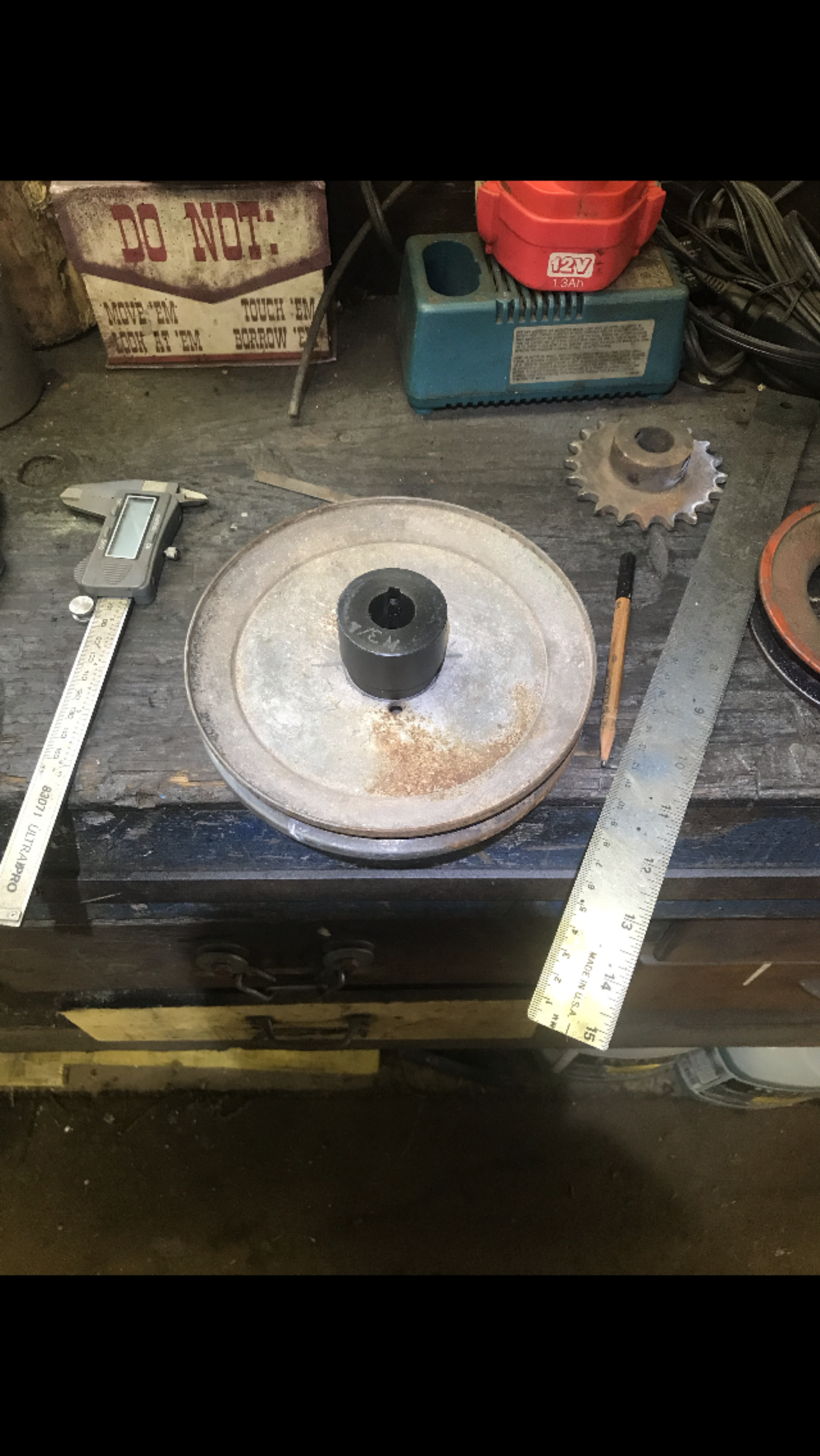

So, I think I mention about the Case 224 not working well in the deep snow, worked ok in the light snow. So thanks to you Case people who know more than I do about Case stuff, we figured out that the pulley on my tractor was to small. It’s about 5” in diameter. Which makes the auger turn faster. The right pulley is 6.5”. Which will slow the auger down. Thanks to Eugen for straighten me out on that. Thanks to Dave for pulley size and the amount of teeth on the cogs. Both snocasters have the right cog, and the 446 has the right pulley. Now for some reason I thought the bigger the pulley the faster it would go. Any way, found a bigger pulley and a weld on shaft thing. All used of course, hehe. So have that made now, but just one more thing to do tomorrow. May have to get a longer belt.

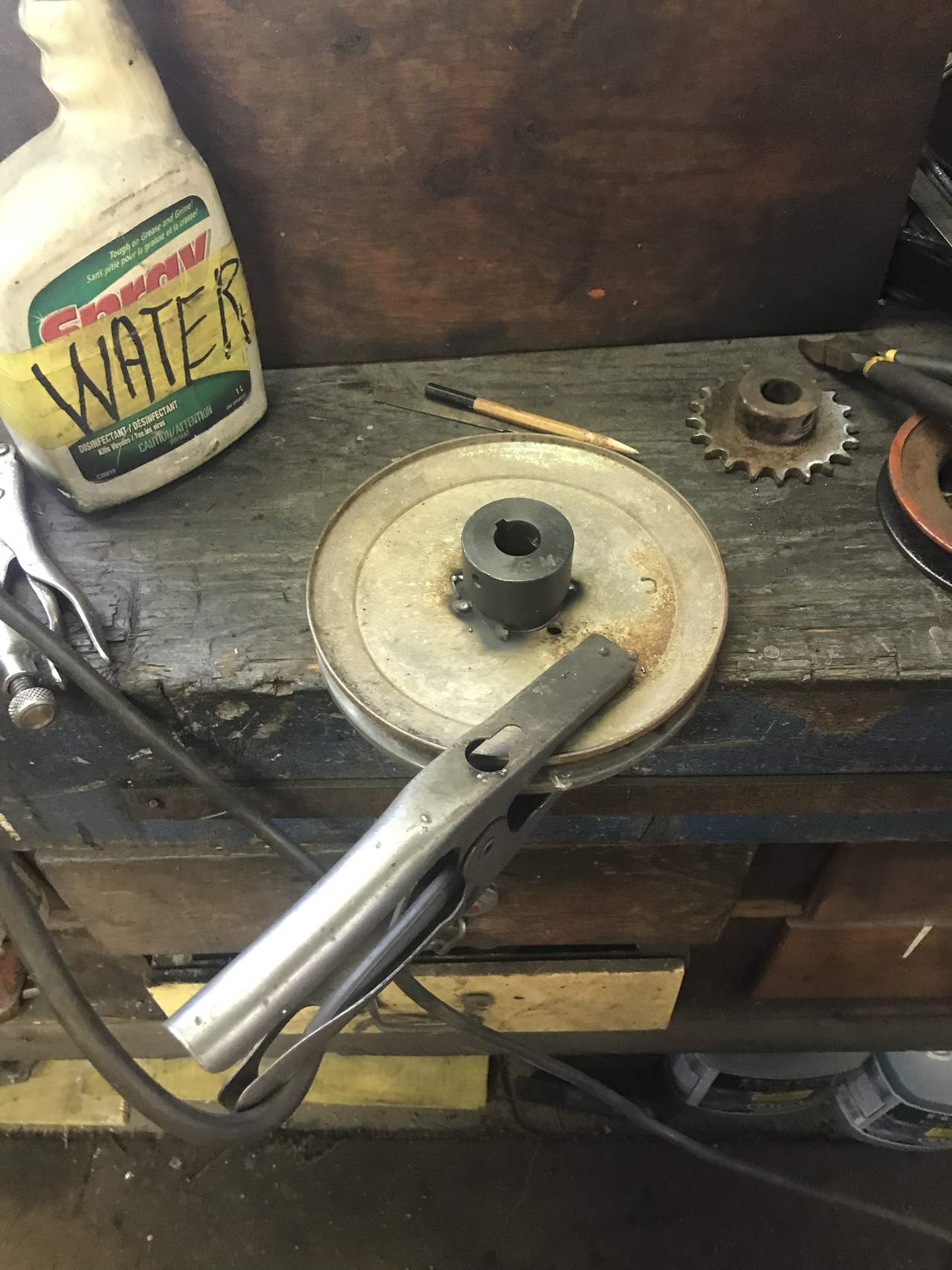

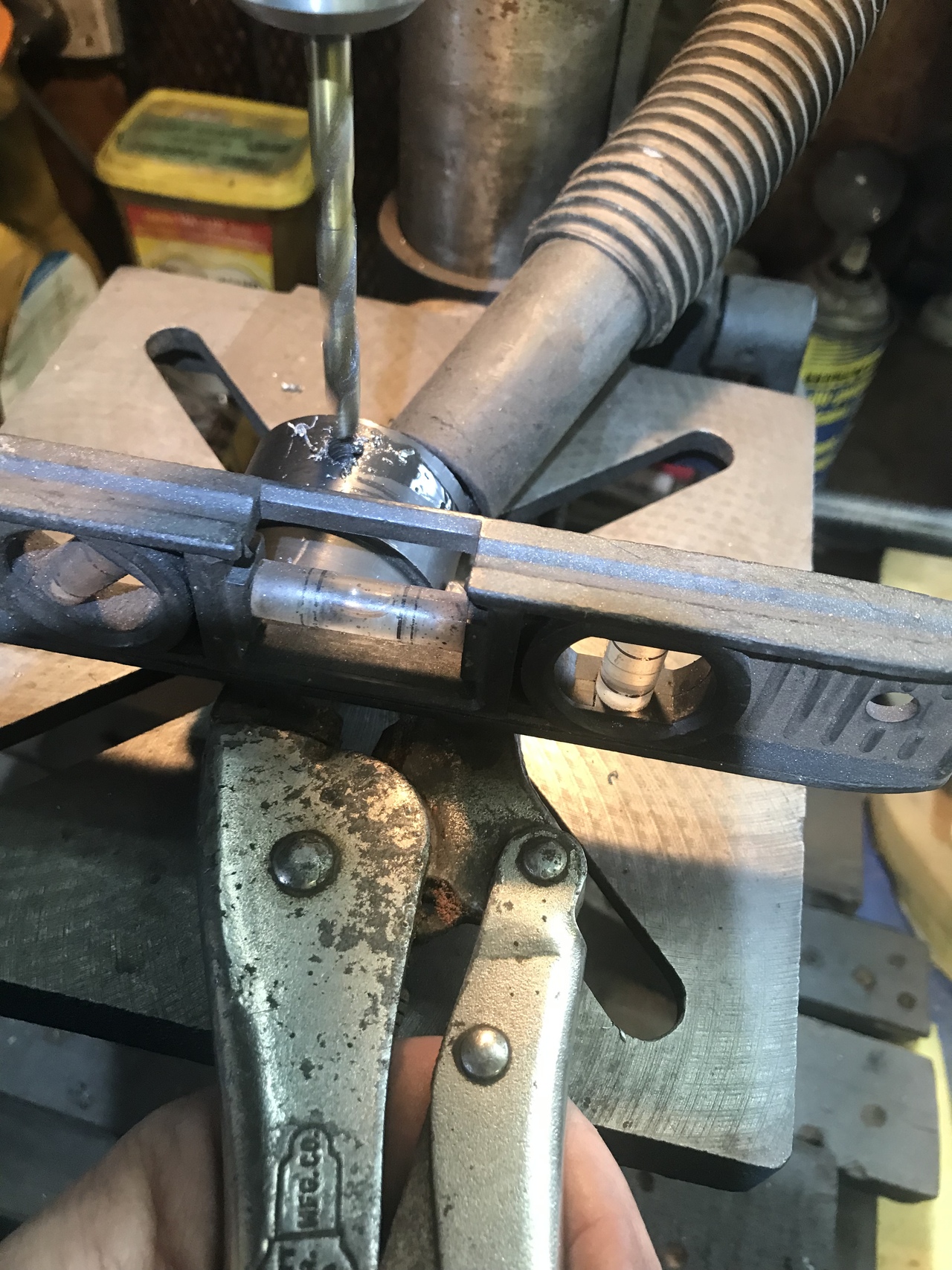

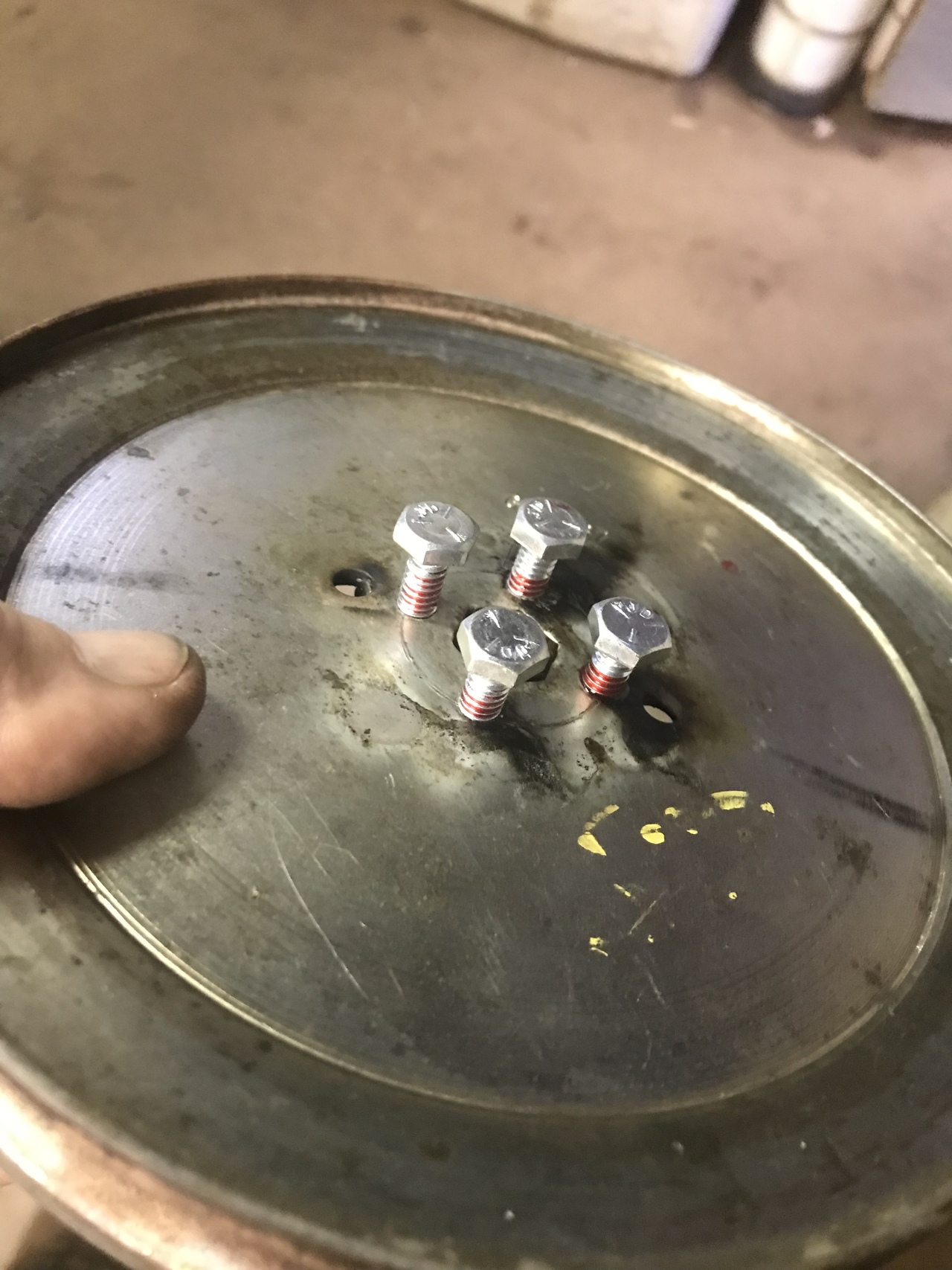

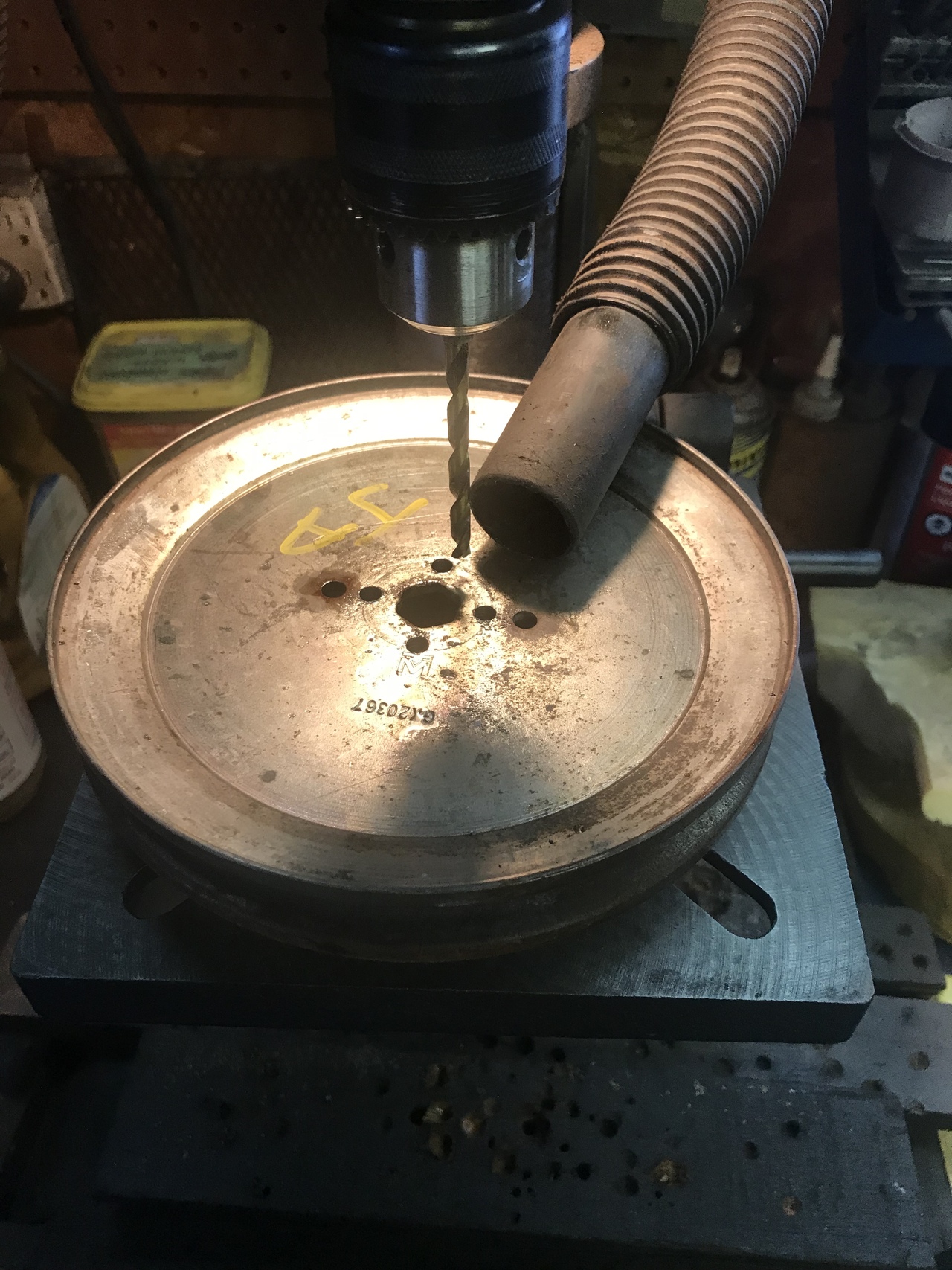

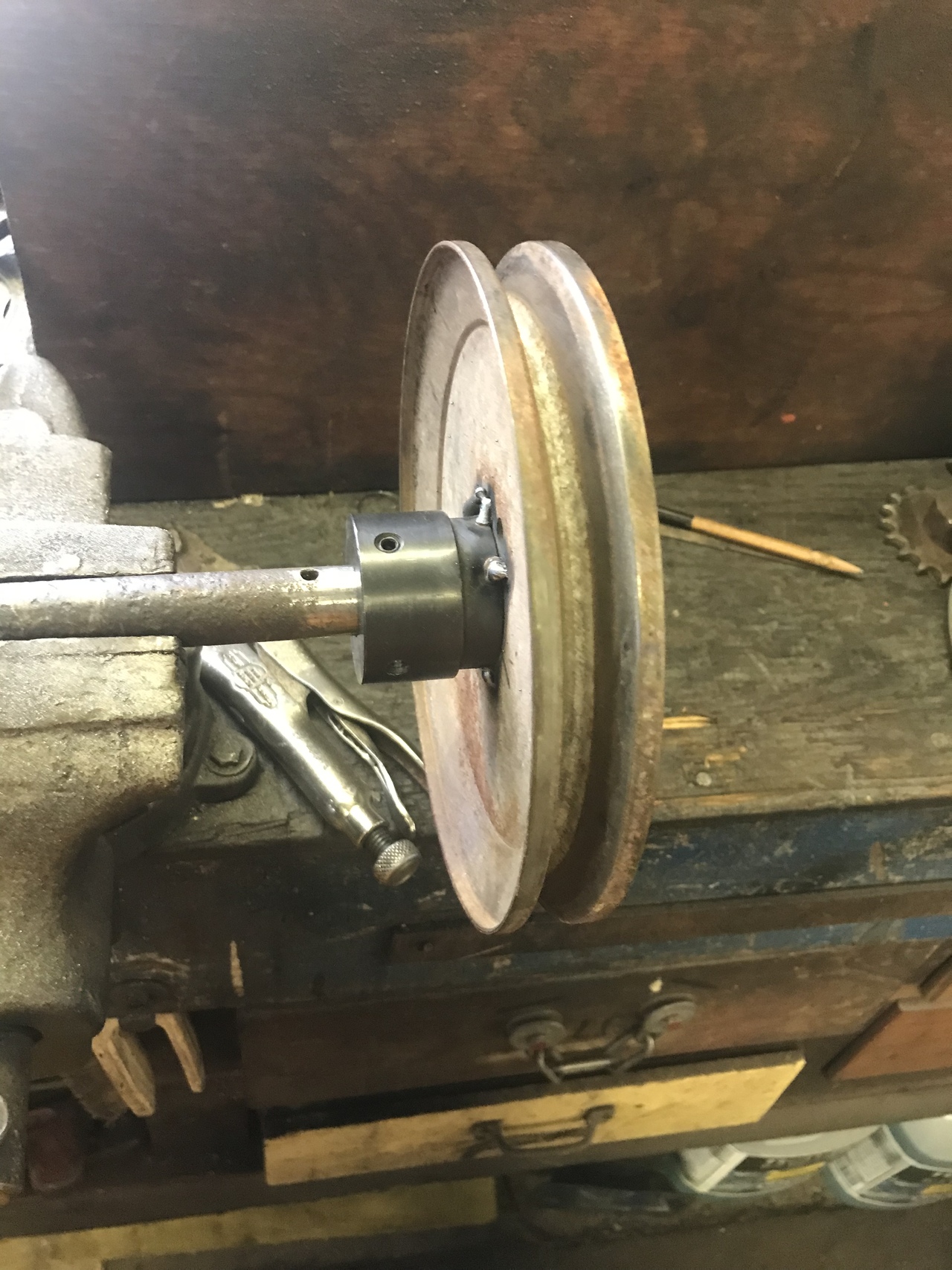

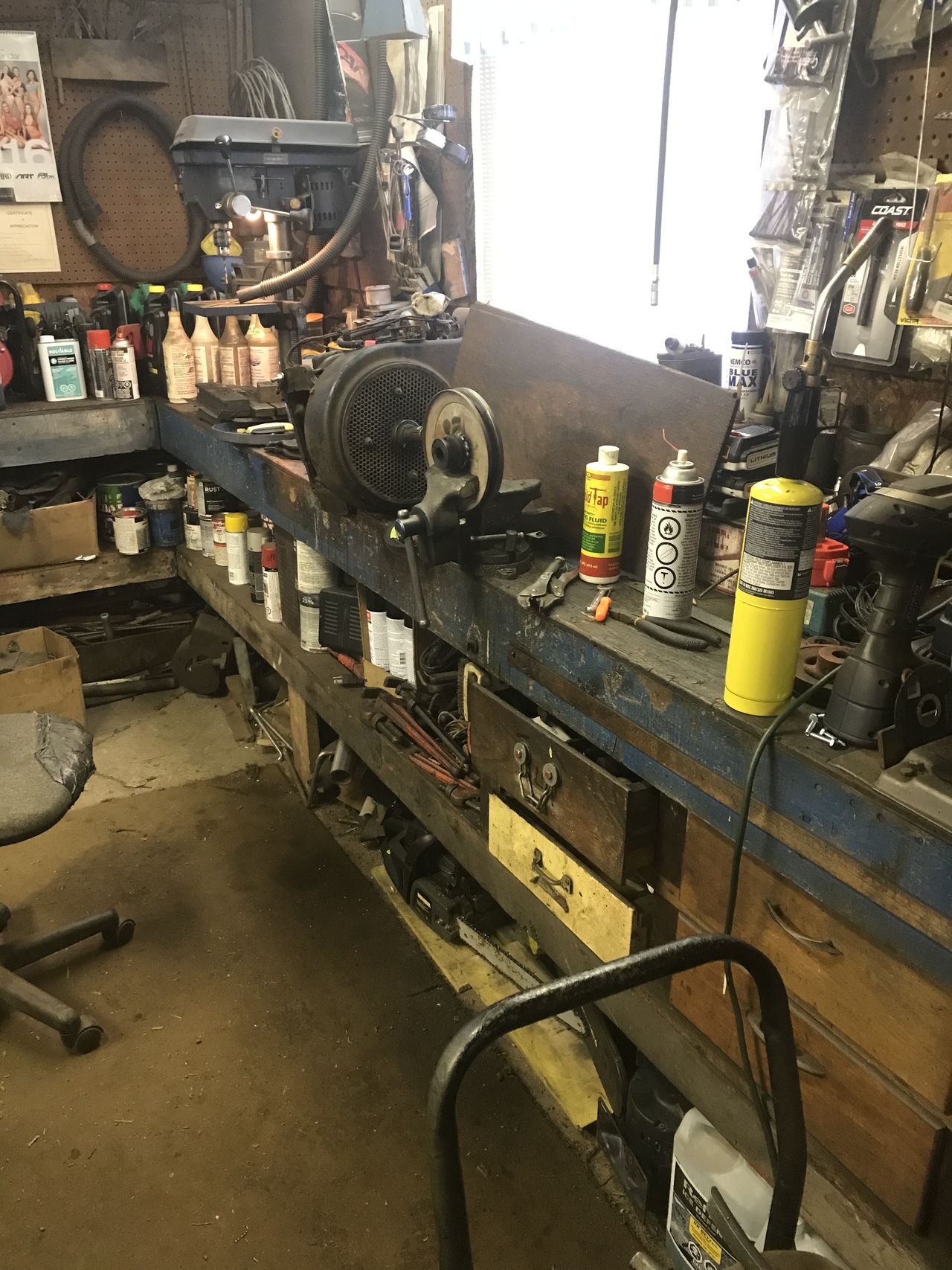

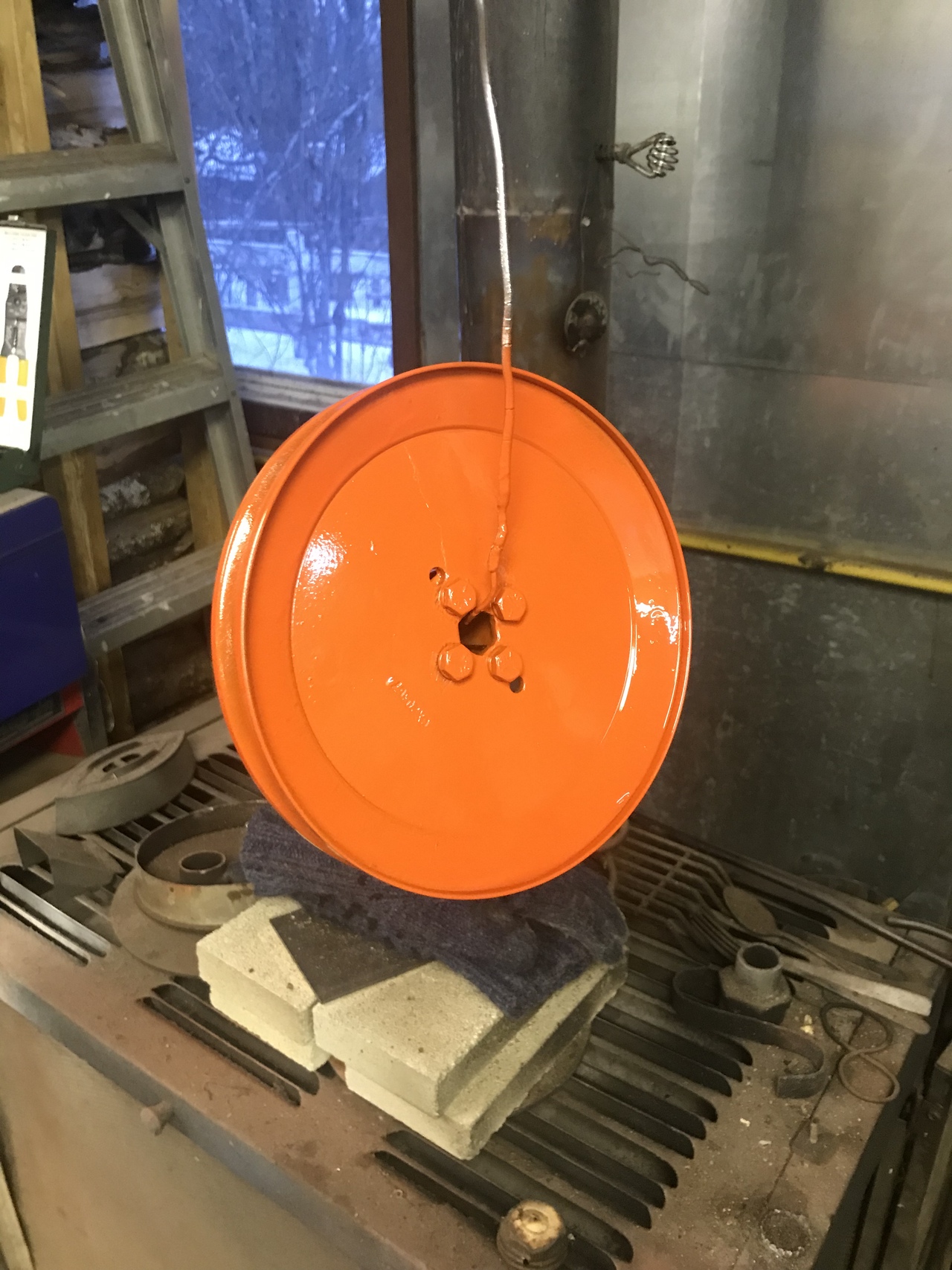

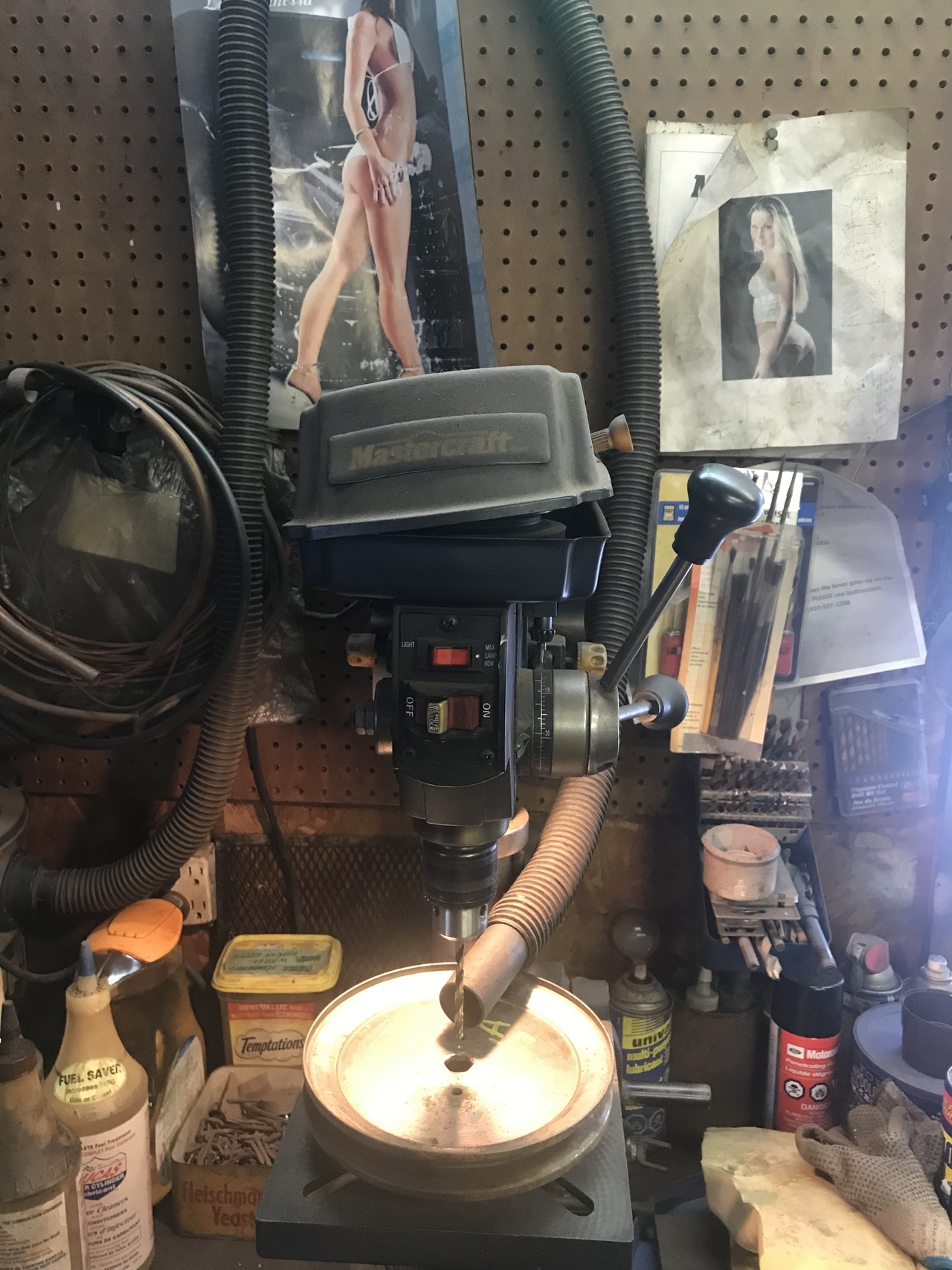

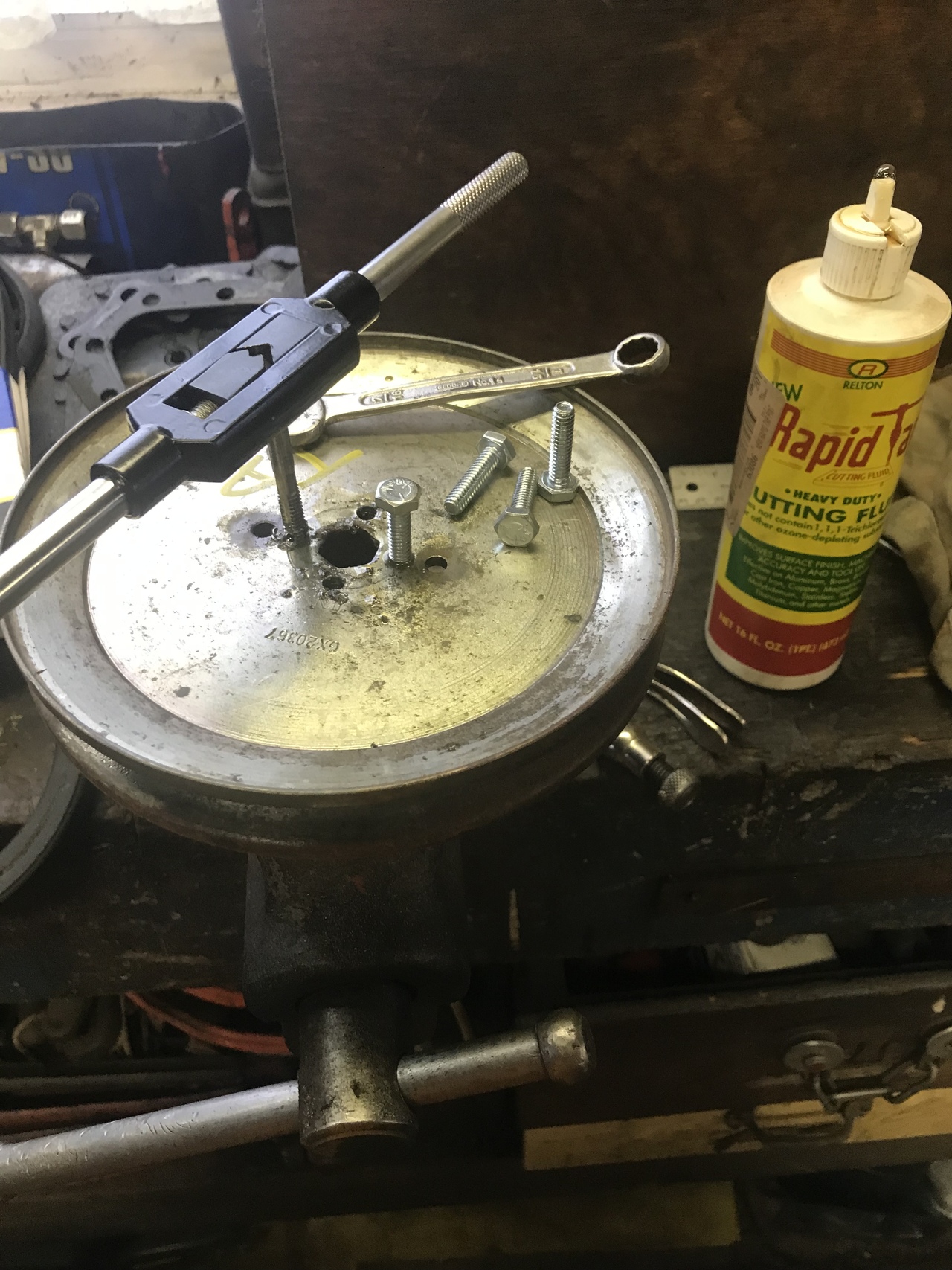

Because my welding is not the greatest, I tack welded the the shaft thing on. I put it on a 3/4 pipe and rotated it. Wanting to see if it was centered. It was good. My machinist skill you know. Then I drilled and tapped four holes thru the pulley and into the weld on thing. Cut inch 1/4 bolts to down to half inch. Some lock tight and lock washers put in. Painted the new pulley assembly.
Hope fully finish it up tomorrow and test it out.
Another storm coming this weekend, basically the same time and place as last week end.
Noel
Because my welding is not the greatest, I tack welded the the shaft thing on. I put it on a 3/4 pipe and rotated it. Wanting to see if it was centered. It was good. My machinist skill you know. Then I drilled and tapped four holes thru the pulley and into the weld on thing. Cut inch 1/4 bolts to down to half inch. Some lock tight and lock washers put in. Painted the new pulley assembly.
Hope fully finish it up tomorrow and test it out.
Another storm coming this weekend, basically the same time and place as last week end.
Noel
