Simple Fuel Gauge

Post by ssmewing »

Take the tank fitting out and replace it with a tee fitting. Drill a couple of holes and some grommets and you can easily have an easy-to-read fuel gauge.
Top
ssmewing United States of America
Posts: 220
Joined: Sun Mar 21, 2021 8:03 pm
Location: Hemlock, MI
Has thanked: 21 times
Been thanked: 855 times

Re: Simple Fuel Gauge

Post by ssmewing »

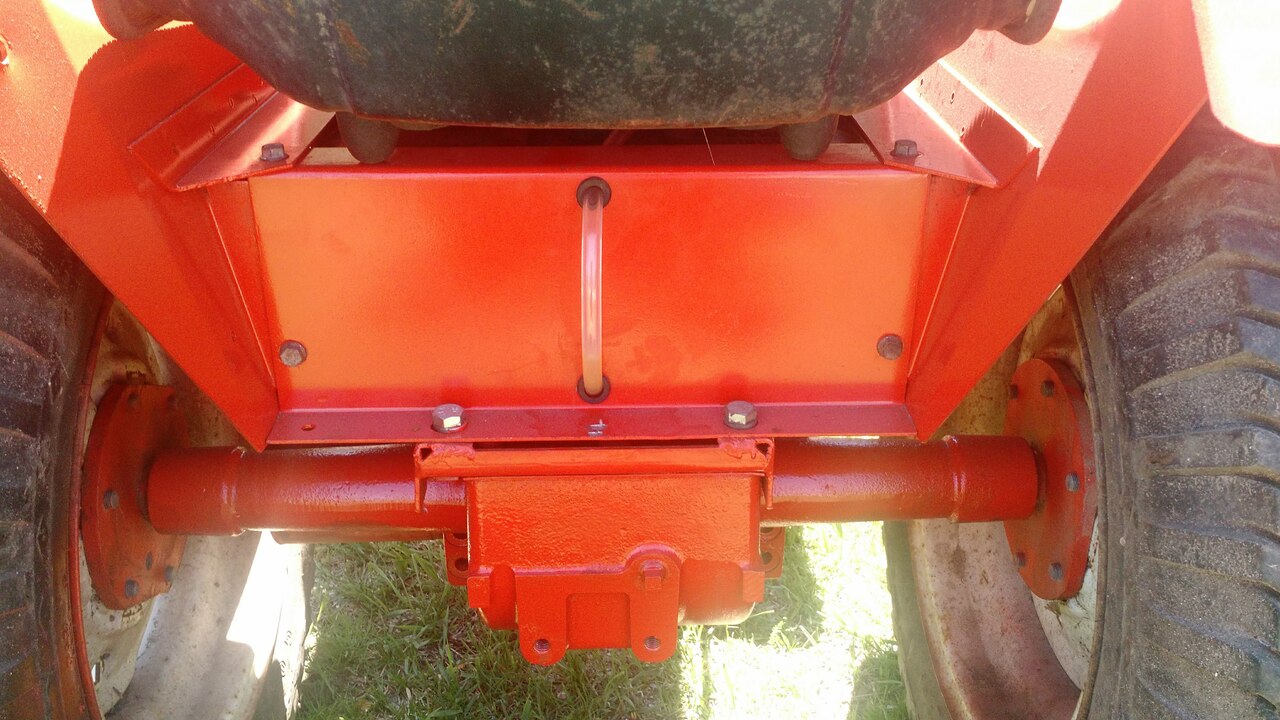

Picture!
Attachments

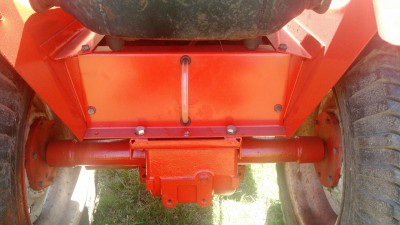

fuel level.jpg
Top
Eugen Canada
Posts: 5379
Joined: Wed Mar 03, 2021 2:52 pm
Location: Port Mcnicoll, Ontario
Has thanked: 14075 times
Been thanked: 17440 times
Contact:
Contact Eugen

Re: Simple Fuel Gauge

Post by Eugen »

Quite ingenious Steve! If I did that I'd consider a protective ss or copper or brass tube though, with a window cut for viewing.
Top
User avatar
MattA United States of America
Posts: 1232
Joined: Sun Mar 07, 2021 1:57 pm
Location: Swansea MA
Has thanked: 5 times
Been thanked: 5593 times

Re: Simple Fuel Gauge

Post by MattA »

This is basically how the boiler water level in a steam locomotive is checked.
I didn't realize the older tractors didn't have fuel gauges.
Ingersoll 4016
