Case 680E
- Eugen
- Posts: 5180
- Joined: Wed Mar 03, 2021 2:52 pm
- Location: Port Mcnicoll, Ontario
- Has thanked: 12169 times
- Been thanked: 16429 times
- Contact:
Re: Case 680E
The seals arrived yesterday so I installed them all. The interesting one this time was the ptfe piston middle band that goes on top of the square rubber profile ring called the energizer. It's the yellow one you see in the image below. It's very stiff so it needs to be warmed up and stretched a tiny bit to make it to the middle of the piston. I used hot water and carefully stretched it just enough to get it on the piston. But, you also need to compress it back or else the piston won't go into the barrel. I first put a layer of electrical insulation tape and left it over night compressed by the piston ring installation tool.

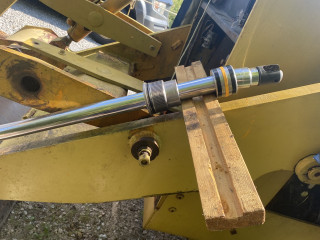

Then the rod went back in its place to get the piston retaining bolt torqued.
Then in the barrel and back on the tractor.
https://vimeo.com/861496199
No leak.
I think this concludes taking care of all the major problems and a few minor ones, with this tractor. Thank you all for coming along for the ride, for your help and comments.
Then the rod went back in its place to get the piston retaining bolt torqued.
Then in the barrel and back on the tractor.
https://vimeo.com/861496199
No leak.
I think this concludes taking care of all the major problems and a few minor ones, with this tractor. Thank you all for coming along for the ride, for your help and comments.
Case 224, 444, 644, 680E
Kubota B26
Kubota B26
- RoamingGnome
- Posts: 666
- Joined: Sun Jan 08, 2023 12:54 am
- Location: Hamilton, ON
- Has thanked: 9412 times
- Been thanked: 3398 times
Re: Case 680E
Looking good @Eugen - Can't wait to see some photos of you moving dirt with it ...
'68 Case 195, '84 Case 446, '88 Ingersoll 222 - and 1965 Case 530ck (fullsize backhoe)
- Toolslinger
- Posts: 307
- Joined: Wed Mar 03, 2021 12:03 pm
- Location: NJ/PA
- Has thanked: 23 times
- Been thanked: 1489 times
Re: Case 680E
That's brave, putting that out for the universe to hear... I can just imagine the universe looking around... " Oh yea?... Sombody hold my beer... We'll see about this guy that thinks he's done..."
Congrats though!
- Spike188
- Posts: 1105
- Joined: Sat Mar 06, 2021 12:58 pm
- Location: Ayr Ontario
- Has thanked: 6154 times
- Been thanked: 4307 times
Re: Case 680E
@Eugen Well accomplished. Echoing @Toolslinger , Imany of my customers TMB machines. (Too Many Birthdays) When ask, "Isit fixed?" My response is "Temporarily, I will see you again soon."
Spike Colt - 9 & 10, Case - 108, 118, 444, 446, 448, 646, 646bh, Ingersoll 4016, 4118AH
- Eugen
- Posts: 5180
- Joined: Wed Mar 03, 2021 2:52 pm
- Location: Port Mcnicoll, Ontario
- Has thanked: 12169 times
- Been thanked: 16429 times
- Contact:
Re: Case 680E
Haha, I'm already doubting everything I did! Thanks guys! You gotta keep me on my toes. Good.
Fine, I just remembered the alternator rebuild kit that's waiting for me. Although I did fix the old alternator and it works, couldn't help myself getting the rebuild kit.
Fine, I just remembered the alternator rebuild kit that's waiting for me. Although I did fix the old alternator and it works, couldn't help myself getting the rebuild kit.
Case 224, 444, 644, 680E
Kubota B26
Kubota B26
- MattA
- Posts: 918
- Joined: Sun Mar 07, 2021 1:57 pm
- Location: Swansea MA
- Has thanked: 2 times
- Been thanked: 3916 times
- Eugen
- Posts: 5180
- Joined: Wed Mar 03, 2021 2:52 pm
- Location: Port Mcnicoll, Ontario
- Has thanked: 12169 times
- Been thanked: 16429 times
- Contact:
Re: Case 680E
@MattA , the main reason I got the backhoe was to dig the foundation for the addition we planned to build. A number of things happened that made us change plans and we're no longer going to build the addition. I think the backhoe will go on the marketplace next spring so I can use it for some small stuff here, maybe pull some stumps.
Case 224, 444, 644, 680E
Kubota B26
Kubota B26
- propane1
- Posts: 2488
- Joined: Thu Dec 23, 2021 11:32 am
- Location: PEI, Canada
- Has thanked: 5931 times
- Been thanked: 9013 times
Re: Case 680E
Your a smart cookie Eugen. Congratulations on all the work you’ve done to it.
Hehe. Phone up the fella you bought from and tell him it’s all fixed. And for sale.
Noel
Hehe. Phone up the fella you bought from and tell him it’s all fixed. And for sale.
Noel
- Harry
- Posts: 1572
- Joined: Sun Mar 07, 2021 8:33 am
- Location: Lockport,NY
- Has thanked: 9735 times
- Been thanked: 6646 times
Re: Case 680E
Eugen, if you keep the hoe long enough I’m sure you’ll come up with projects for it. Harry
1973 444, 1974 644, 1976 446, 1977 646, 1986 226
Re: Case 680E
Very impressed what you've been able to accomplish. Congrats on a job well done!
