snow caster mods.
- propane1
- Posts: 2486
- Joined: Thu Dec 23, 2021 11:32 am
- Location: PEI, Canada
- Has thanked: 5926 times
- Been thanked: 9000 times
Re: snow caster mods.
That’s a great thing Dave. First quick thought is power window motors with eccentric things on them some how.
Noel
Noel
- DavidBarkey
- Posts: 3205
- Joined: Sat Mar 06, 2021 10:35 am
- Location: Waverley On.
- Has thanked: 17608 times
- Been thanked: 10919 times
Re: snow caster mods.
The cams hold the shoes at full up or full down via the support rod . Each pic. show in up or down mode .
Dave
Dave
Mad Tractor Builder
Mad Tractor Builder
- Eugen
- Posts: 5178
- Joined: Wed Mar 03, 2021 2:52 pm
- Location: Port Mcnicoll, Ontario
- Has thanked: 12159 times
- Been thanked: 16421 times
- Contact:
Re: snow caster mods.
Oh, now that you say cam I get it. For some reason I was thinking the rod is tightly connected to the cam lobe/ring, but it just rests on it right?
Case 224, 444, 644, 680E
Kubota B26
Kubota B26
- DavidBarkey
- Posts: 3205
- Joined: Sat Mar 06, 2021 10:35 am
- Location: Waverley On.
- Has thanked: 17608 times
- Been thanked: 10919 times
- DavidBarkey
- Posts: 3205
- Joined: Sat Mar 06, 2021 10:35 am
- Location: Waverley On.
- Has thanked: 17608 times
- Been thanked: 10919 times
Re: snow caster mods.

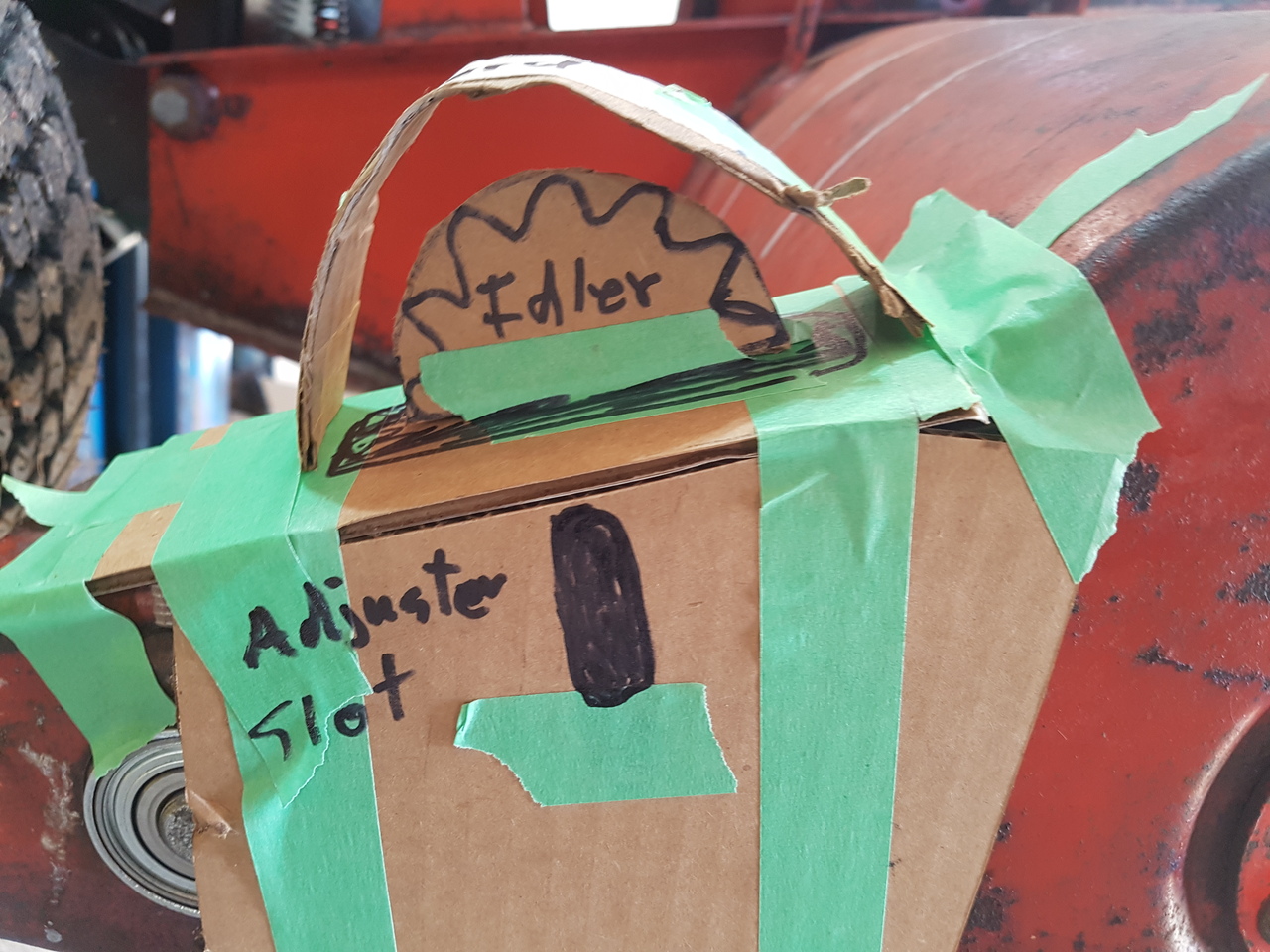

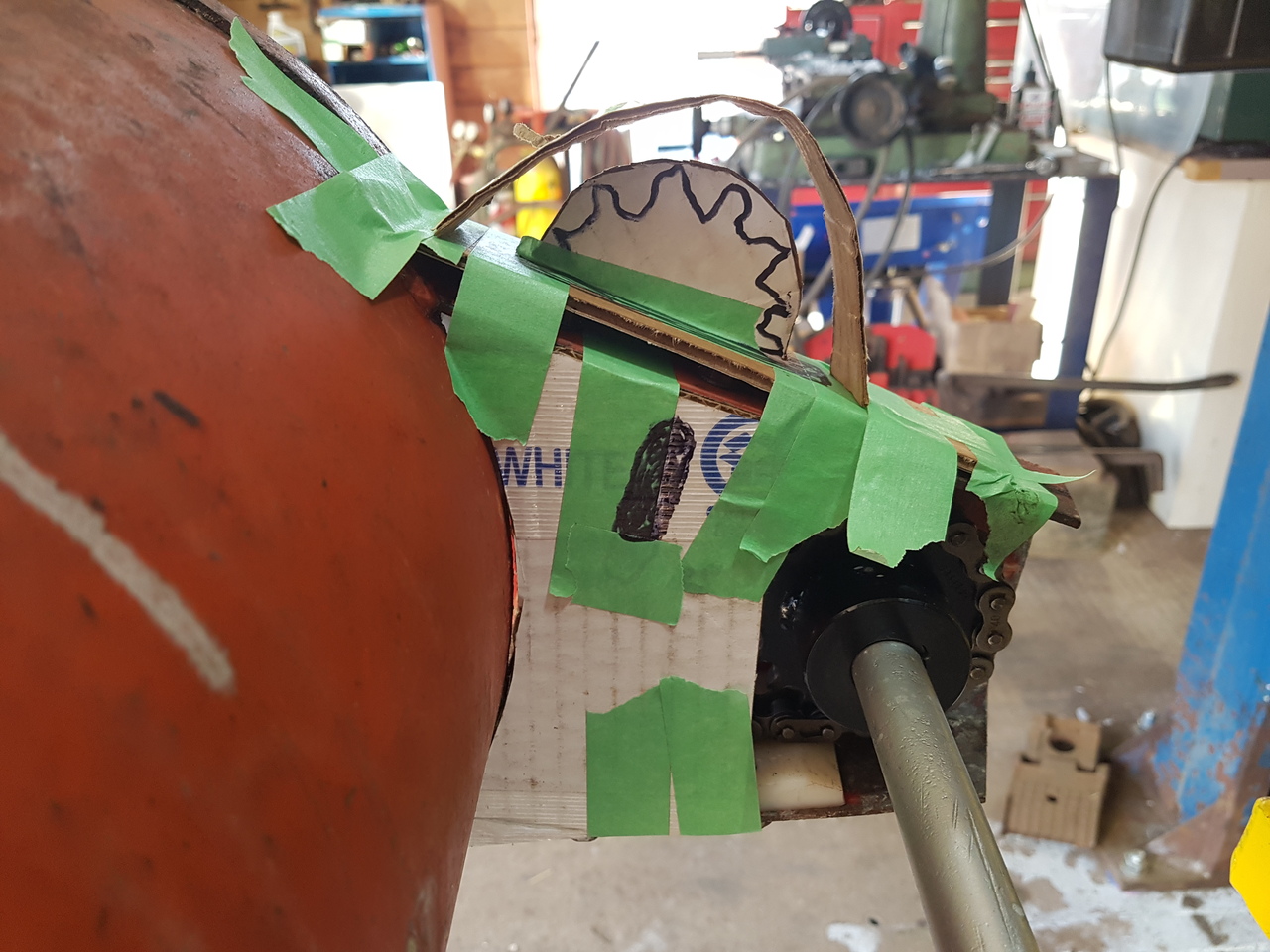

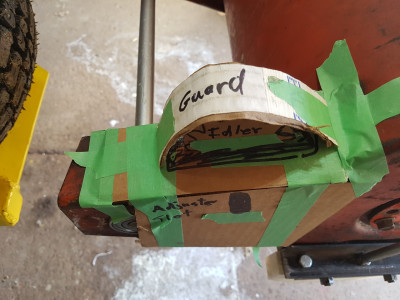

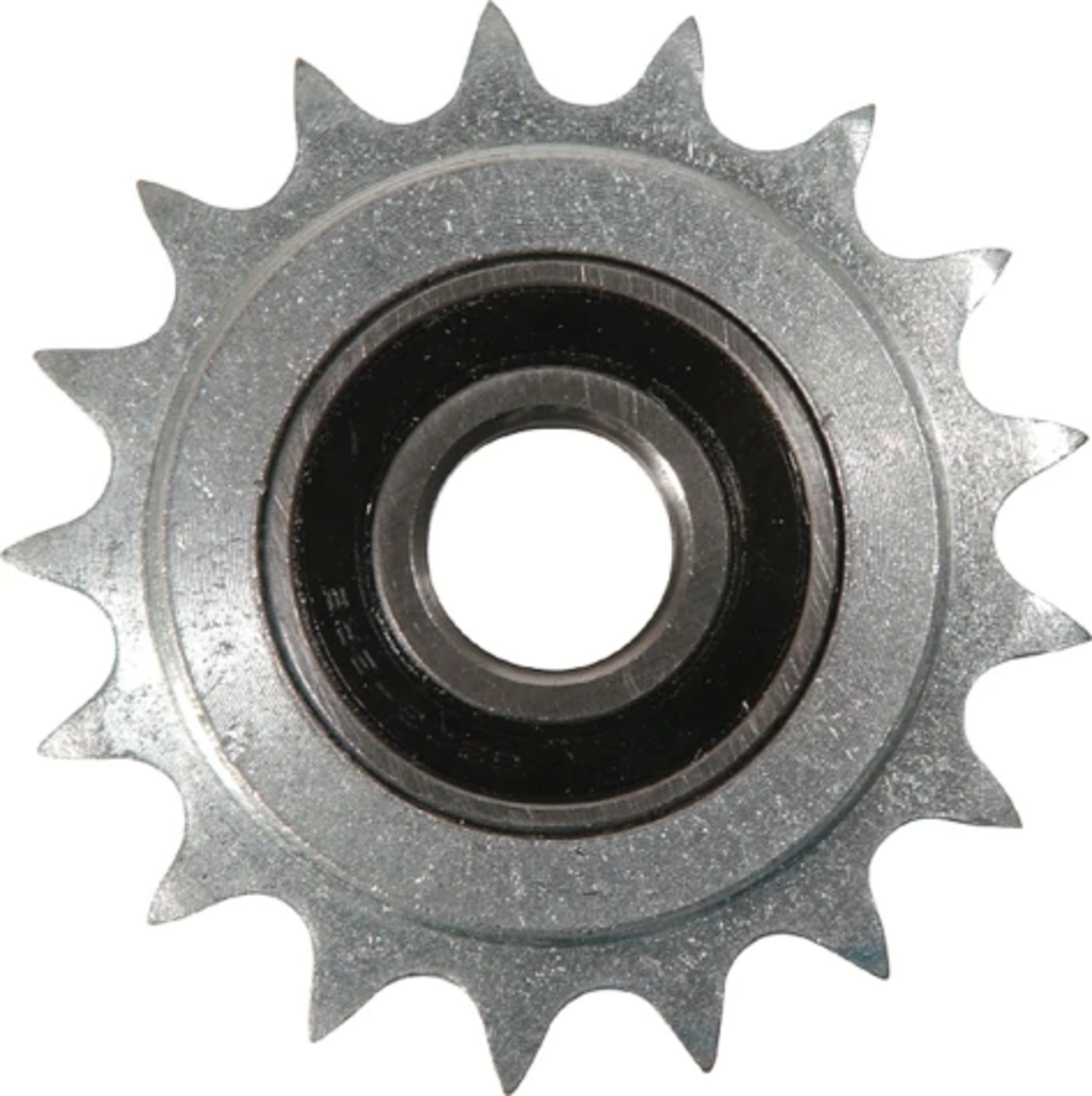

Harry here is the simplest way to do an idler . Spring loaded would be more involved . That is a standard idler for a #40 chain . It i s about 3" in Dia.Harry wrote: ↑Wed Mar 30, 2022 7:48 amMy caster is like the one you showed, but by moving the sprocket shaft it only tightens it a little. There are three different positions.DavidBarkey wrote: ↑Wed Mar 30, 2022 6:59 amThe newer design uses an adjustable bearing on the shaft sprocket and the auger is fixed in one spot .Propane57 wrote: ↑Tue Mar 29, 2022 8:21 pm You would think that if it needed one the Case designers would have put one there. Neither of my Case throwers have any chain idlers. My John Deere snow thrower does have a sprocket chain idler. My Ford thrower has a plastic chain idler. So do the Case ones need one. Or not. ? Hard to say.
Noel
Like in the parts diagram .
Dave
Keep the Peace
Harry
Hopes this helps
Dave
Dave
Mad Tractor Builder
Mad Tractor Builder
- MattA
- Posts: 915
- Joined: Sun Mar 07, 2021 1:57 pm
- Location: Swansea MA
- Has thanked: 2 times
- Been thanked: 3910 times
Re: snow caster mods.
Hey Dave- Maybe I missed this but why not use the adjustment mechanism from the newer SB48 snowcasters?
Ingersoll 4016
- propane1
- Posts: 2486
- Joined: Thu Dec 23, 2021 11:32 am
- Location: PEI, Canada
- Has thanked: 5926 times
- Been thanked: 9000 times
-
- Posts: 324
- Joined: Sat Mar 06, 2021 3:09 pm
- Location: Houghton Lake, MI
- Has thanked: 16 times
- Been thanked: 1438 times
Re: snow caster mods.
Was thinking the same thing. Then while your at it, use the old auger adjustment system to bring the auger as close to the housing possible and then tighten the chain like the sb48. I've had an older case caster with my 4000 series. I swapped the mule drive around. Then I got my hands on my current sb48 which was correct for my tractor. I like the chain adjuster better then the older auger adjustment. This sb48 was in way better condition.MattA wrote:Hey Dave- Maybe I missed this but why not use the adjustment mechanism from the newer SB48 snowcasters?
Sent from my SM-G975U using Tapatalk
-
