Re: Fixing up my new 4020PS
I’ve used the Rustoleum rust converter. It’s readily available but not sure how well it actually works.
1973 444, 1974 644, 1976 446, 1977 646, 1986 226
-
propane1
- Posts: 2900
- Joined: Thu Dec 23, 2021 11:32 am
- Location: PEI, Canada
- Has thanked: 6963 times
- Been thanked: 11129 times
Re: Fixing up my new 4020PS
I remember people would use lemon or orange juice on rust. The juice right out of the lemon or orange. It will turn the rust black.
Now, I’m old and can’t remember well,
, so I could be wrong. Do your research on that.
Noel.
Now, I’m old and can’t remember well,
, so I could be wrong. Do your research on that. Noel.
-
MattA
- Posts: 1306
- Joined: Sun Mar 07, 2021 1:57 pm
- Location: Swansea MA
- Has thanked: 5 times
- Been thanked: 5942 times
Re: Fixing up my new 4020PS
I picked up some rustoleum rust reformer that I can brush on. It also comes in a spray can. I also picked up some rustoleum reform and seal spray for the under side of the deck.Youtube channel "Project Farm" has a lot of good reviews including rust reformers.
Progress has been slow in the past week due to other time and energy consuming home projects. RM48 mule drive #1 was reassembled. RM48 mule drive #4 was rebuilt. RM48 mule drive #3 will be finished up tomorrow. The tensioner springs for mule drives 3, 4 & 5 (spare unit) are all stretched out and will get replaced.
RM48 deck #3 will get my relatively new set of spindles (pulleys) including the RM38 center drive. The mulching kit will go back in this deck. RM48 deck #4 will get RM48 deck #3's spindles (pulleys) since deck #4's spindles are quite rusty from being outside.
Hopefully on the list this weekend is getting the plow setup ready to sell + my weight box.
Progress has been slow in the past week due to other time and energy consuming home projects. RM48 mule drive #1 was reassembled. RM48 mule drive #4 was rebuilt. RM48 mule drive #3 will be finished up tomorrow. The tensioner springs for mule drives 3, 4 & 5 (spare unit) are all stretched out and will get replaced.
RM48 deck #3 will get my relatively new set of spindles (pulleys) including the RM38 center drive. The mulching kit will go back in this deck. RM48 deck #4 will get RM48 deck #3's spindles (pulleys) since deck #4's spindles are quite rusty from being outside.
Hopefully on the list this weekend is getting the plow setup ready to sell + my weight box.
Ingersoll 4016
-
MattA
- Posts: 1306
- Joined: Sun Mar 07, 2021 1:57 pm
- Location: Swansea MA
- Has thanked: 5 times
- Been thanked: 5942 times
Re: Fixing up my new 4020PS
RM48 mule drive #3 is finished up aside from a new spring.

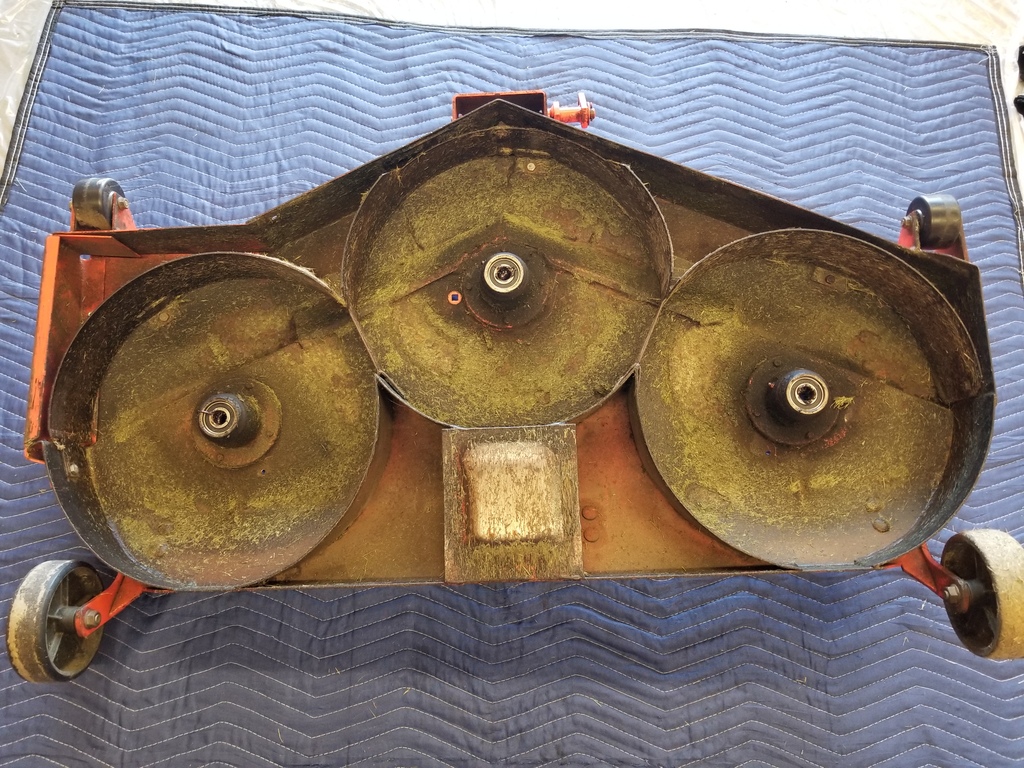

Mulching kit reinstalled in RM48 deck #3.
RM48 deck #4 raising/lowering mechanism on the front of the deck has been freed up. I tried some PB Blaster but had no luck. Would have helped if the grease fitting was removable. I ended up pumping grease through the grease fitting and gently working the mechanism back and forth with a 18" adjustable wrench. It didn't want to accept much grease. I just kept working at it until it freed up. Its not perfectly smooth like Deck #3. It binds up a little but I can move it by hand. Its probably good enough and hopefully will loosen up on its own.
I think I found the hydraulic leak. The hydraulic filter had previously been wet but not covered in dirt. I had a feeling it was loose and it was. It took a good 1/8 turn to tighten up the hydraulic filter.

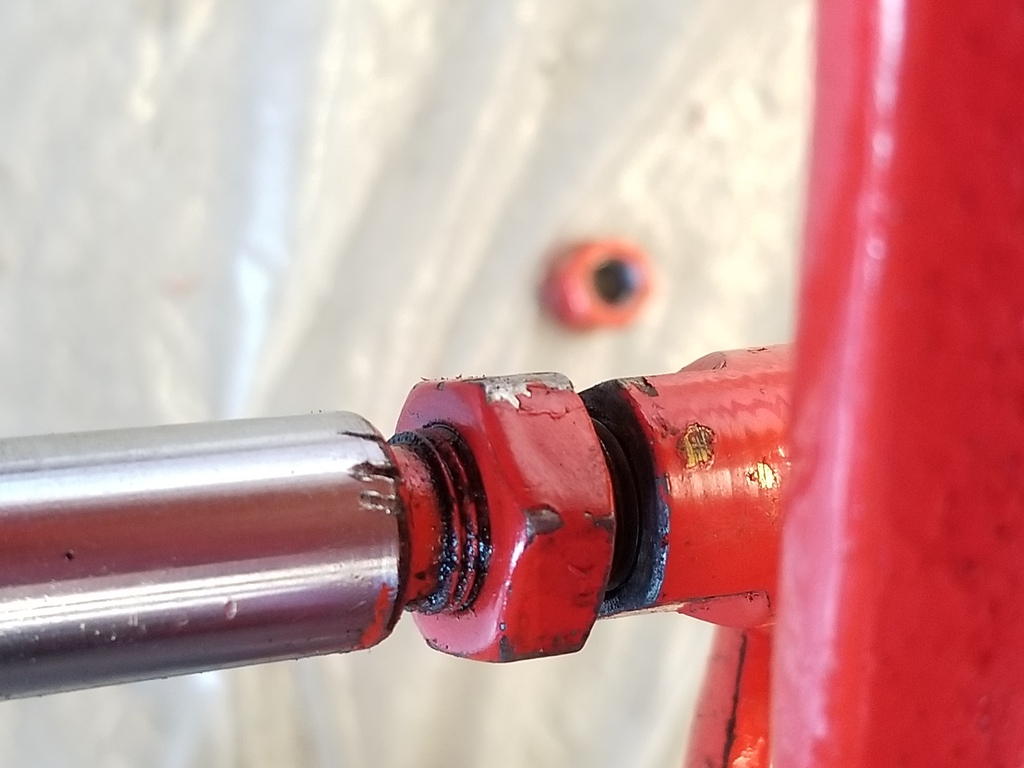

The last thing I worked on was modifying the power steering for a better turning radius. I had previously broken off a 1/8" drill bit in the hole and spent a good hour and a half failing at getting the drill bit out. I bought some hardened center punches and with a lot of effort was able to get the broken bit out of the hole. New hole has been drilled. I was working on adjusting the power steering hydraulic cylinder rod end when the girls got home. The rod end doesn't want to turn on the cylinder rod. I can see marks where someone (possibly the previous owner) used a pair of pliers or vice grips on the very end of the rod
I don't want to be that guy so I quit for the day and will do some research. I also need to set the steering stops.

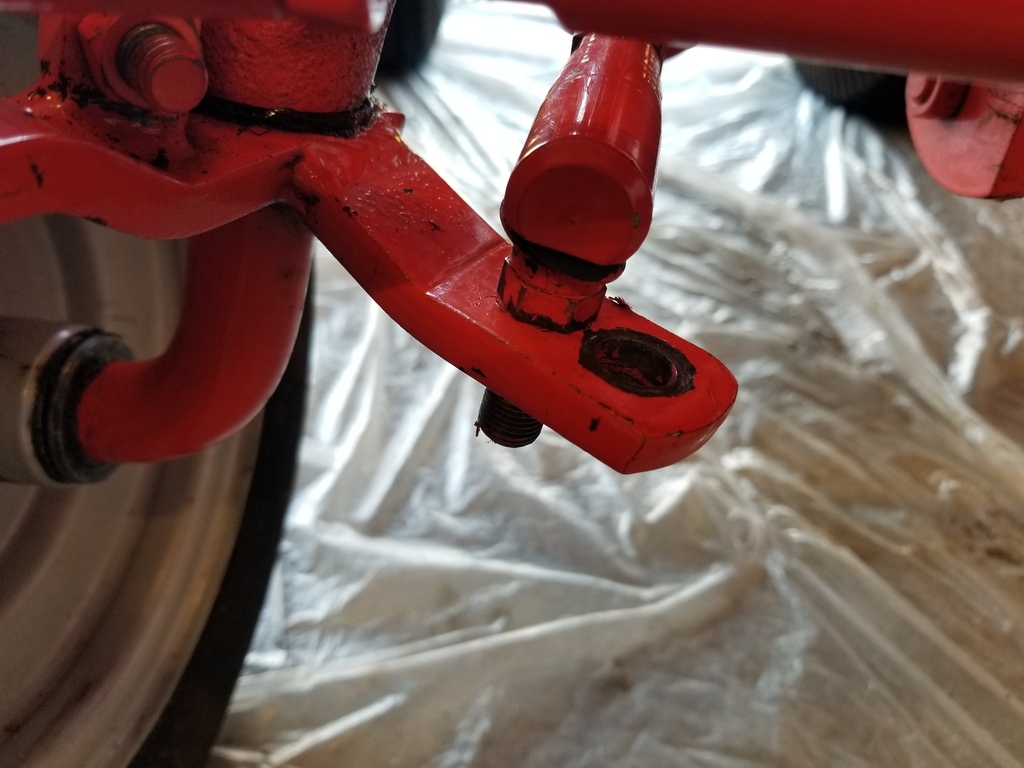

New Chile drilled. Rod end isn't secured.
Mulching kit reinstalled in RM48 deck #3.
RM48 deck #4 raising/lowering mechanism on the front of the deck has been freed up. I tried some PB Blaster but had no luck. Would have helped if the grease fitting was removable. I ended up pumping grease through the grease fitting and gently working the mechanism back and forth with a 18" adjustable wrench. It didn't want to accept much grease. I just kept working at it until it freed up. Its not perfectly smooth like Deck #3. It binds up a little but I can move it by hand. Its probably good enough and hopefully will loosen up on its own.
I think I found the hydraulic leak. The hydraulic filter had previously been wet but not covered in dirt. I had a feeling it was loose and it was. It took a good 1/8 turn to tighten up the hydraulic filter.
The last thing I worked on was modifying the power steering for a better turning radius. I had previously broken off a 1/8" drill bit in the hole and spent a good hour and a half failing at getting the drill bit out. I bought some hardened center punches and with a lot of effort was able to get the broken bit out of the hole. New hole has been drilled. I was working on adjusting the power steering hydraulic cylinder rod end when the girls got home. The rod end doesn't want to turn on the cylinder rod. I can see marks where someone (possibly the previous owner) used a pair of pliers or vice grips on the very end of the rod
I don't want to be that guy so I quit for the day and will do some research. I also need to set the steering stops.New Chile drilled. Rod end isn't secured.
