Re: 646-75lbh Restoration

Post by Eugen »

@Spike188 any words of advice on getting the swing cylinder(s) off the frame? :hitsfan:
Top
User avatar
Spike188 Canada
Posts: 1195
Joined: Sat Mar 06, 2021 12:58 pm
Location: Ayr Ontario
Has thanked: 7259 times
Been thanked: 4721 times

Re: 646-75lbh Restoration

Post by Spike188 »

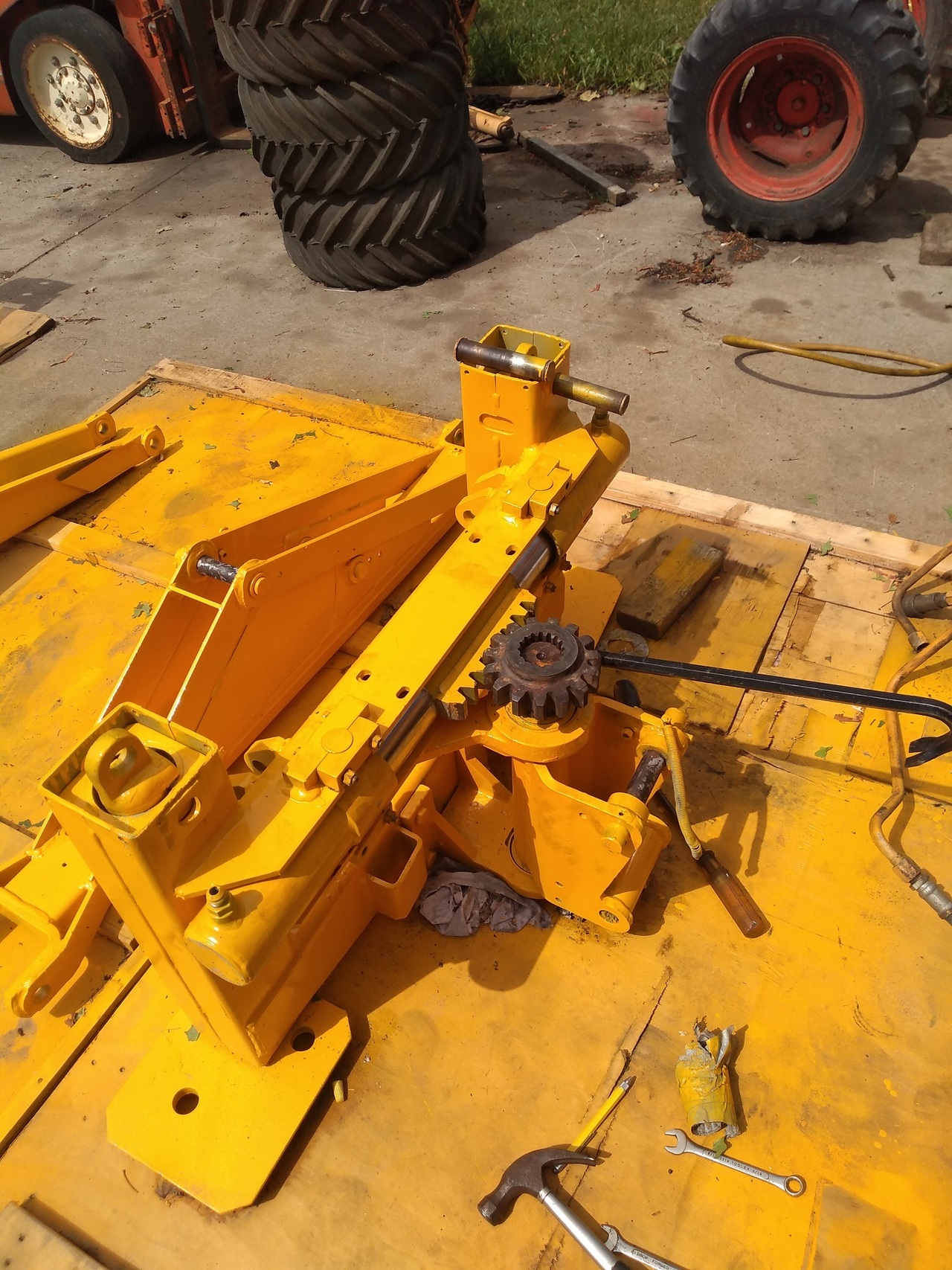

swing cylinder setup.jpg
Here are pictures of the swing assembly. To remover the swing cylinders, remove the swing arm 16 tooth pinon gear. It is held in place by 2 socket head set screws. Once it is off there are 4 clamps / 8 bolts that hold the swing cylinder in place.
Spike Colt - 9 & 10, Case - 108, 118, 444, 446, 448, 646, 646bh, Ingersoll 4016, 4118AH
